Description
4-72centrifugal fan

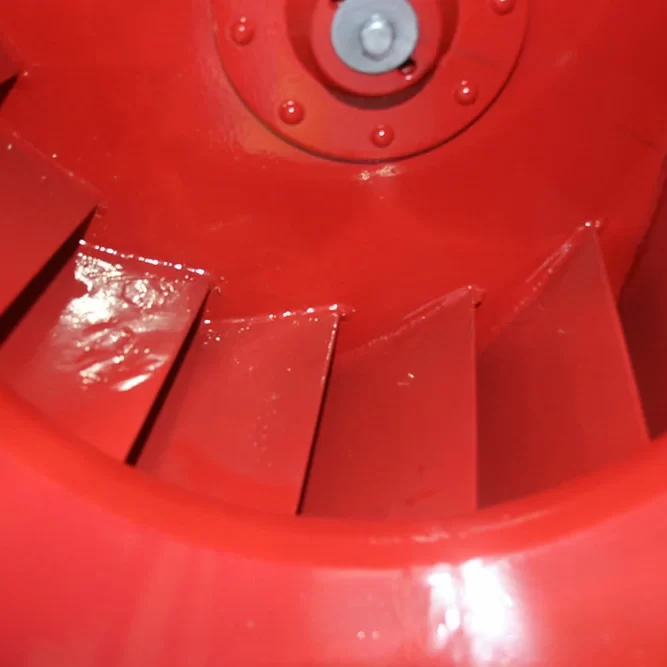

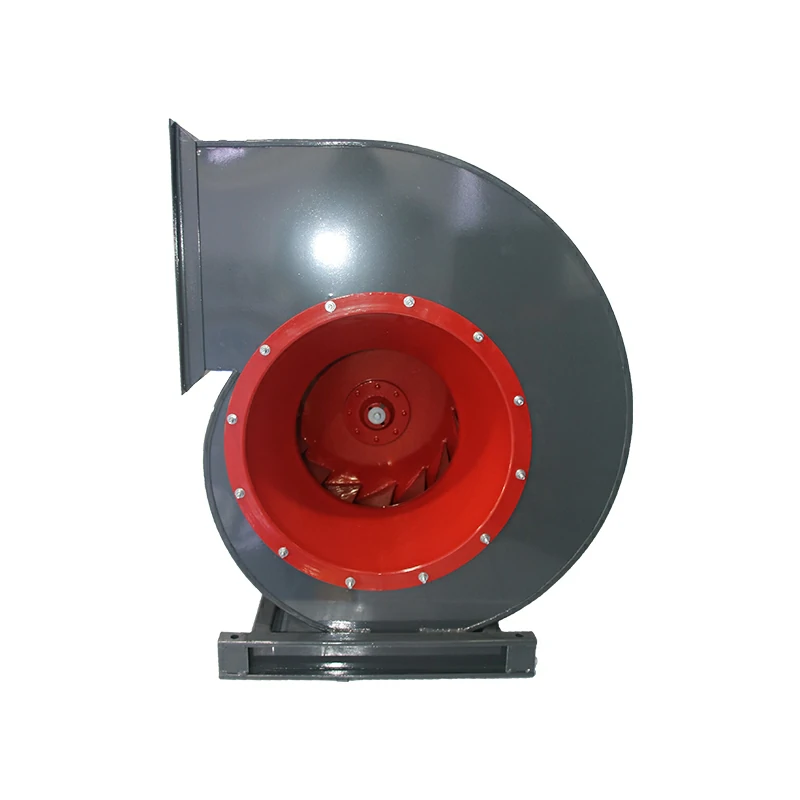

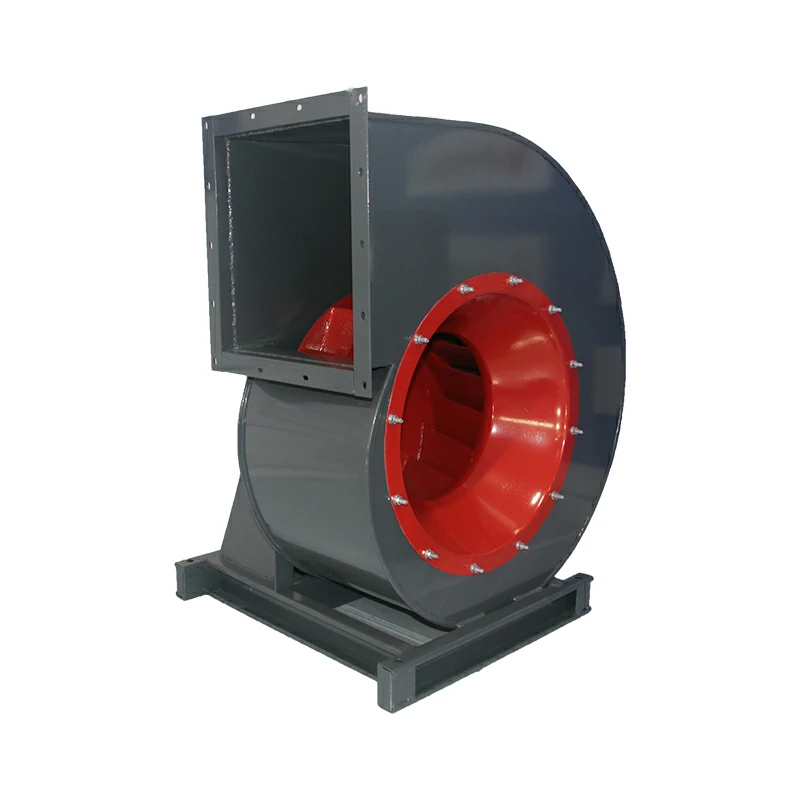

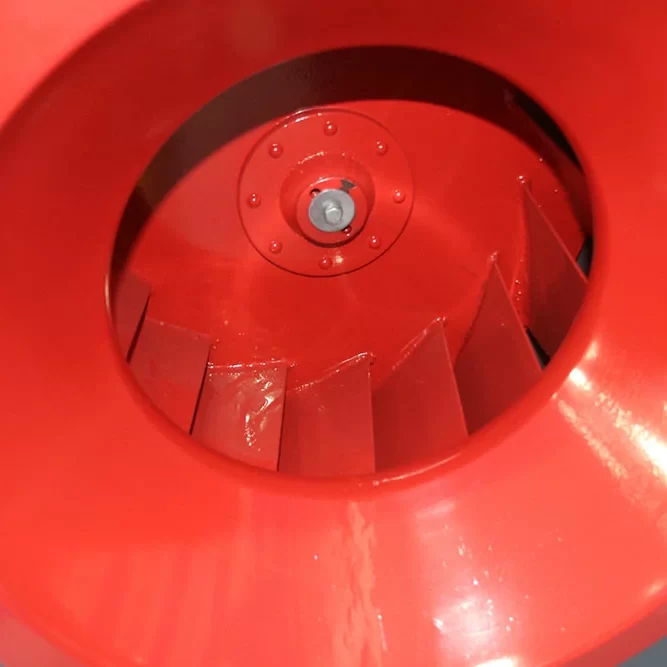

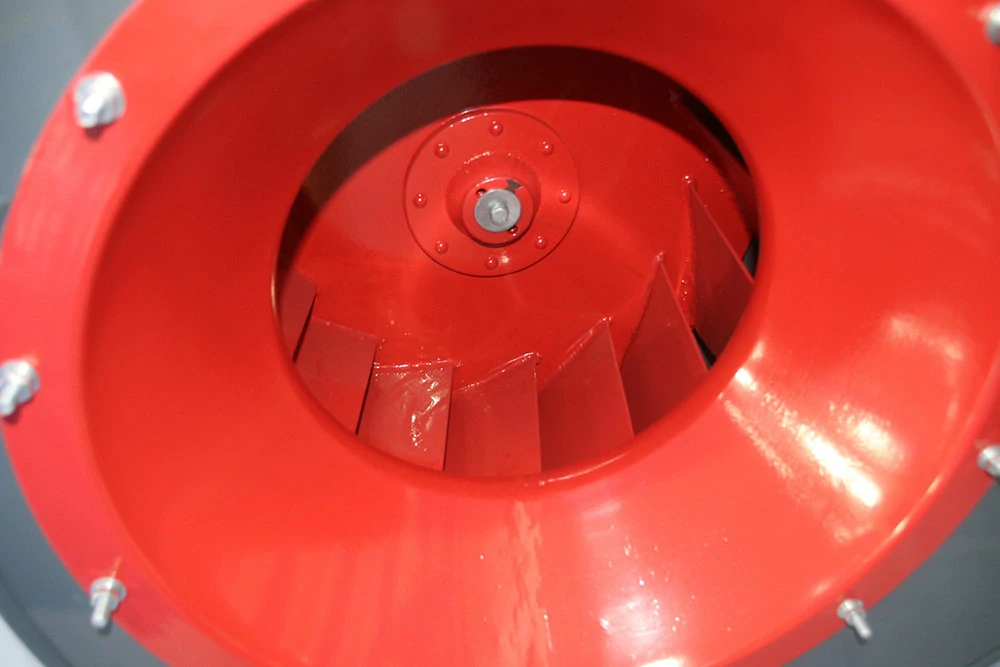

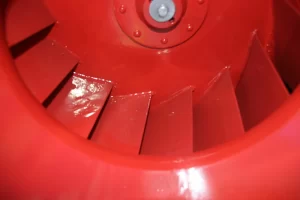

4-72centrifugal fan is a high-efficiency and energy-saving centrifugal fan. Its airfoil-shaped blades, curved impeller front disk and cone-shaped inlet collector make the fan have excellent aerodynamic performance and play an important role in my country’s economy. In the construction industry, it has been enduring for many years.The 4-72 type centrifugal fan is suitable for air supply, exhaust and general ventilation in various civil and industrial buildings. It is mainly composed of impeller, impeller casing, air inlet and motor. The direction of rotation is divided into right rotation and left rotation, viewed from one end of the motor.
specification
| No. | Speed
(r/min) |
Working condition | Air Flow
(m³/h) |
Total pressure
(Pa) |
Moter power
(kw) |
| 2.8A | 2900 | 1 | 1330 | 970 | 1.5 |
| 3.2A | 2900 | 2 | 2450 | 1167 | 2.2 |
| 3.2A | 1450 | 3 | 1385 | 264 | 1.1 |
| 3.6A | 2900 | 4 | 4846 | 1382 | 3 |
| 3.6A | 1450 | 5 | 2350 | 323 | 1.1 |
| 4A | 2900 | 6 | 7420 | 1340 | 5.5 |
| 4A | 1450 | 1 | 2010 | 510 | 1.1 |
| 4.5A | 2900 | 2 | 7120 | 2412 | 7.5 |
| 4.5A | 1450 | 3 | 2900 | 578 | 1.1 |
| 5A | 2900 | 4 | 11830 | 2844 | 15 |
| 5A | 1450 | 5 | 6392 | 647 | 2.2 |
| 6A | 1450 | 6 | 12720 | 800 | 4 |
| 6A | 980 | 1 | 4520 | 510 | 1.5 |
| 6C | 2240 | 3 | 14500 | 2549 | 15 |
| 6C | 2000 | 3 | 12950 | 2039 | 11 |
Advantage
1. The ventilation effect is good. The 4-72 centrifugal fan has a good exhaust effect and is very suitable for use in duct exhaust or air supply;
2. Strong applicability. The 4-72 centrifugal fan is commonly used in pipelines to transport air. It can be used in places without corrosion, flammable and explosive gases.
3. Low noise. The 4-72 centrifugal fan adopts a reasonable impeller angle design based on air flow mechanics. During operation, there is no mechanical friction and the reasonable blade shape minimizes the noise; the noise generated by the 4-72 centrifugal fan It is high-frequency noise and can be soundproofed as long as there are obstacles.
4. Smooth operation. The optimized design of the impeller reduces the axial force to a minimum. It has an efficient impeller and has been corrected by static and dynamic balance to make the whole machine run smoothly. Without any vibration reduction device, the bearings The amplitude is relatively small.
5. Less maintenance, because the impeller adopts a backward tilt type, which is not easy to adhere to dust and other media, and the motor uses imported bearings.
6. It is easy to maintain. Some models can be equipped with cleaning doors, so there is no need to disassemble the machine for maintenance and cleaning, saving time and effort.
7. Sturdy and durable, the casing and impeller are made of high-quality steel plates, making the fan stronger. The surface of the whole machine is spray-coated, which has strong oxidation resistance and is not easy to be rusted.
APPlication
Air supply for civil buildings
High efficiency and energy saving, airfoil blades, curved impeller front disk and tapered arc inlet collector, have good aerodynamic performance, balanced operation, small vibration and high efficiency
The ventilation effect is good. The 4-72 centrifugal fan has a good exhaust effect and is very suitable for use in duct exhaust or air supply.
Strong applicability
The 4-72 centrifugal fan is a fan commonly used in ducts to transport air. It can be used in places with corrosive, flammable and explosive gases.
Low noise
The 4-72 centrifugal fan adopts a reasonable impeller angle design based on air flow mechanics. During operation, there is no mechanical friction and the reasonable blade shape minimizes the noise; the noise generated by the 4-72 centrifugal fan It is high-frequency noise and can be soundproofed as long as there are obstacles.
Company profile
1.Shandong Aike Group is a modern enterprise integrating the design, research and development, sales and maintenance of water tank varieties, with more than ten years of supply experience. The company covers an area of 10,000 square meters and has more than 200 employees,30% of whom are excellent technical personnel.
2.It also has a sales team that is proficient in e-commerce. The company follows the “Belt and Road” initiative as a guide and implements its vision of “green development”. Shandong Aike Group adheres to the business philosophy of “customer first, innovation-driven” and cultivates a corporate culture of “honesty and trustworthiness”.
3.In recent years, its performance has continued to grow and its expansion has been steady. This trajectory has cemented lasting trust among clients and fostered lasting partnerships. In the current tide of economic development and fierce market competition, the company cherishes its hard-won honors.
4.Shandong Aike Group firmly follows the path of industrialization and modernization, and relies on the diligence and wisdom of “Aike” people to unswervingly create products with reliable quality and excellent service.
Shandong Aike Group is a leading manufacturer on 4-72centrifugal fan committed to providing high-quality fans to the world. Shandong Aike Group adheres to a firm commitment to pursuing excellence and specializes in the production of innovative and reliable fans, including axial flow fans, mixed flow fans, roof fans, and heaters.
FAQ
1. Are you a factory or a trading company?
Yes, we are manufacturer.
2. What protection is there if the Fire rated exhaust fan is broken?
The Fire rated exhaust fan has a one-year warranty. If a malfunction occurs, normally our technicians will
Use customer feedback to identify problem areas. If it is a quality problem, we will replace the parts for free.
3. How about the documents after shipment?
After shipment, we will send all original documents to you via DHL, including packing list, commercial invoice, bill of lading and others
Required certificates.
4. How long is the delivery time?
7-10 days for standard axial fan below 100 cubic meters; for non-standard axial fan and according
Customized axial fan according to customer’s specific requirements will take 15 to 30 days.
5. How about the payment method?
Wire transfer (T/T). L/C at sight.
6. Do you arrange delivery of the machine?
Yes, dear customer, for FOB or CIF price, we will arrange shipment for you. For EXW price, customer needs
Arrange delivery by yourself or through an agent.
7. How about the packaging?
Solid seaworthy plywood box packaging with steel straps saves as much container loading space as possible.
Welcome your inquiry to us. Or leave message to us.
Email: sales@aikegroupco.com
Centrifugal fan vedio

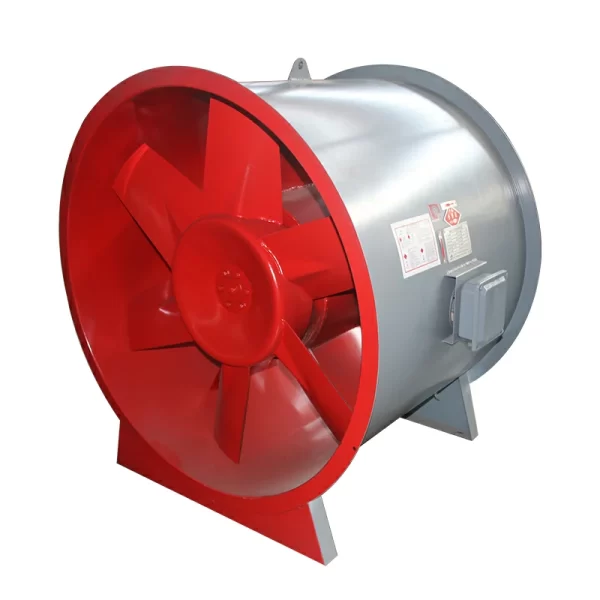

Our company could also supply the Mixed flow fan,Fire rated exhaust fan, Axial fan, Axial flow heater
