chilled water fan coil unit

Description

Chilled water fan coil unit

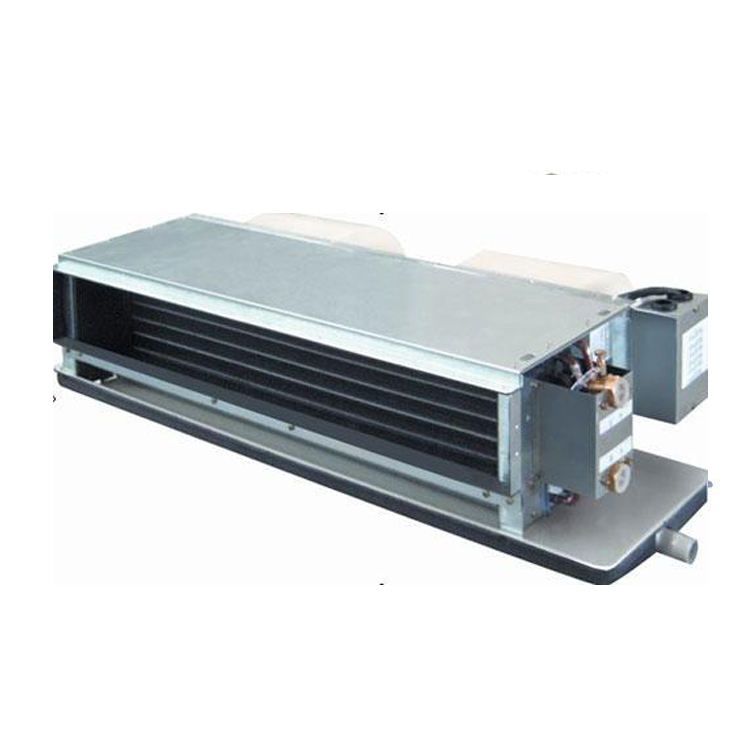

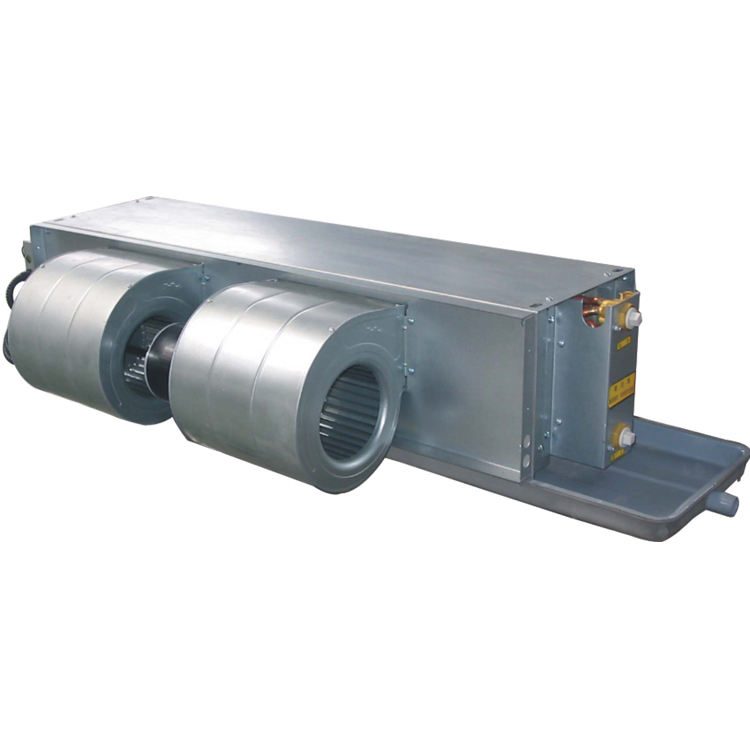

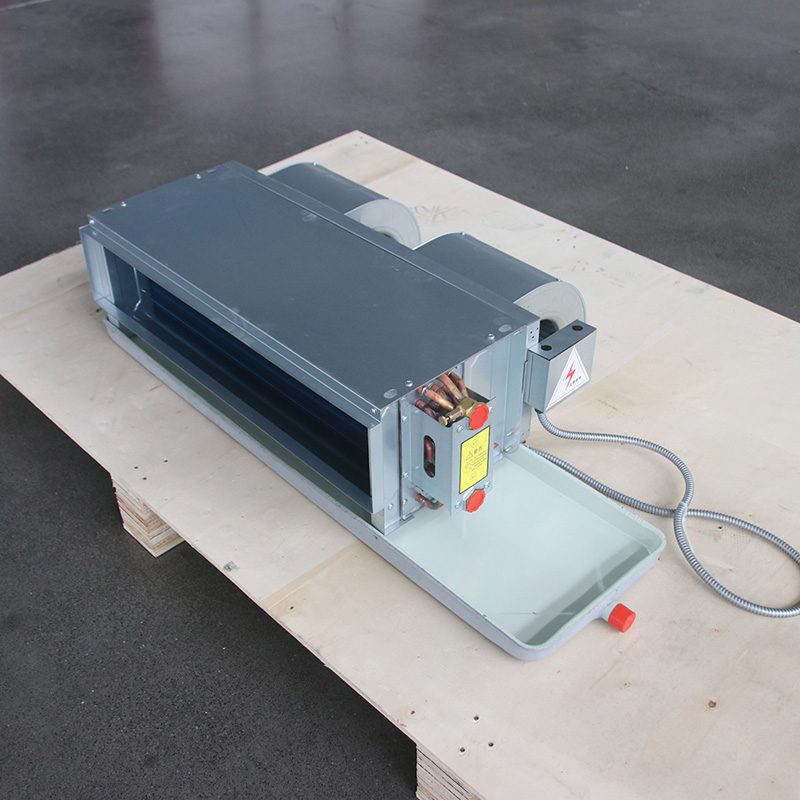

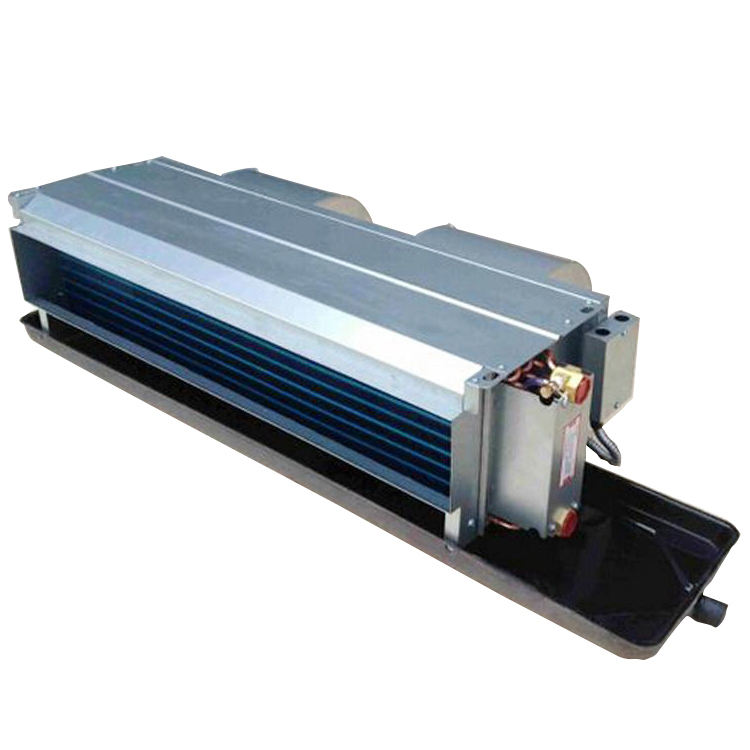

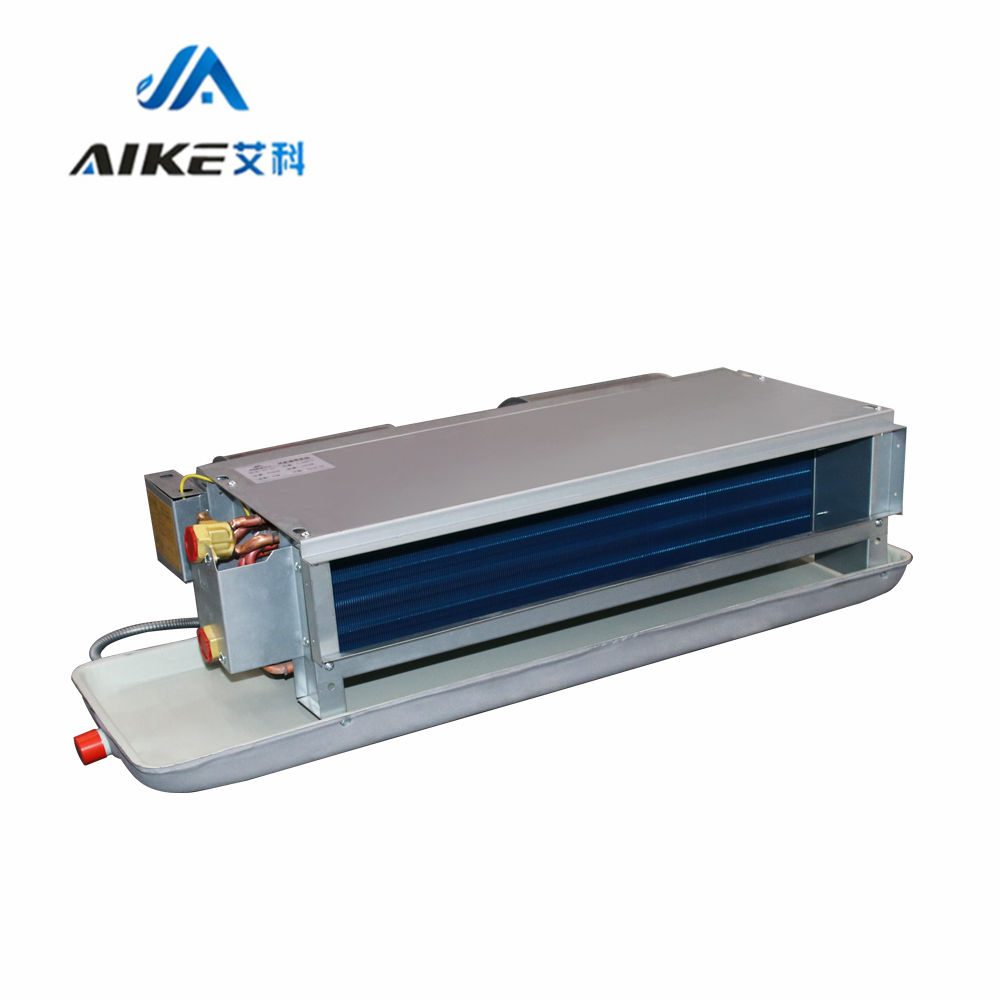

The main control parameters of the horizontal concealed fan coil unit are rated air volume, outlet static pressure, input power, rated cooling capacity, rated heat supply, noise, water resistance, etc. For the fan coil unit of the dual-pipe water system (applicable to air conditioning systems that switch heating or cooling only according to seasons or only according to air conditioning zones), only one set of coils is configured, and it is a model for both winter and summer heating/cooling. For the fan coil unit of the four-pipe water system (suitable for air conditioning systems with frequent switching of heating/cooling), a combined model with two sets of heating and cooling coils should be configured.

Specification

Type			FP-34	FP-51	FP-68	FP-85	FP-102	FP-136	FP-170	FP-204
Rated Air flow		H	340	510	680	850	1020	1360	1700	2040
		M	260	390	510	640	770	1020	1280	1530
		L	170	260	340	430	510	680	850	1020
Rated cooling capacity	W	H	1920	2810	3720	4660	5558	7282	9093	10980
Rated cooling capacity	Kcal/h	H	1680	2420	3300	4020	4860	6250	7980	9421
Rated Heating capacity	W	H	3135	4550	5982	7360	8720	11381	14218	16750
Rated Heating capacity	Kcal/h	H	2555	3724	4902	6042	7134	9376	11704	13813
Output Power(w)	12pa	H	37	52	62	76	96	134	152	189
	30pa	H	44	59	72	87	108	156	174	212
	50pa	H	49	66	84	100	118	174	210	250
dB(A) Noise	12Pa	H	37	39	41	43	45	46	48	50
	30Pa	H	40	42	44	46	47	48	50	52
	50Pa	H	42	44	46	47	49	50	52	54
Water Volume(kg/h)			319	478	638	797	956	1275	1594	1913
Water pressure loss(kpa)			≤30	≤30	≤30	≤30	≤40	≤40	≤40	≤40
Gross Weight（kg）	WA With return box WM LM KM		12	15	16	18	19	25	29	33
			14	17	19	21	23	30	34	38
			24	28	30	33	36	47	58	61
			27	32	33.5	36.5	39.5	50.5	62	65
			/	22		31		35
Inlet and Outlet pipe			3/4” Iinternal Thread
Condensate pipe			3/4” External Thread
KM serious condensate pipe			/	25mm		32mm

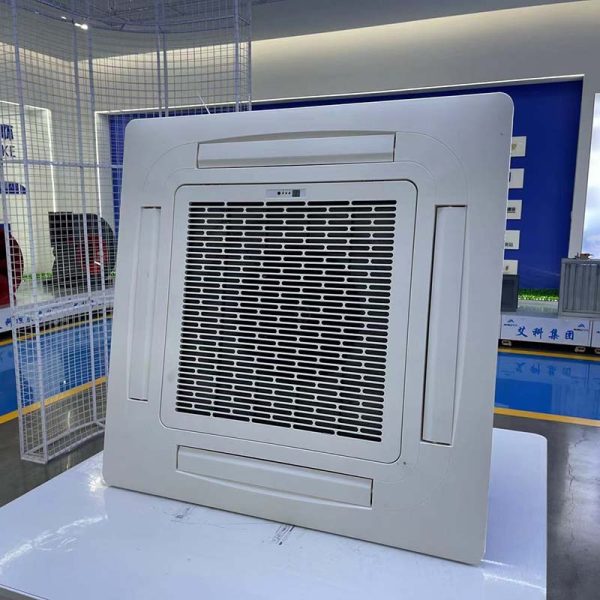

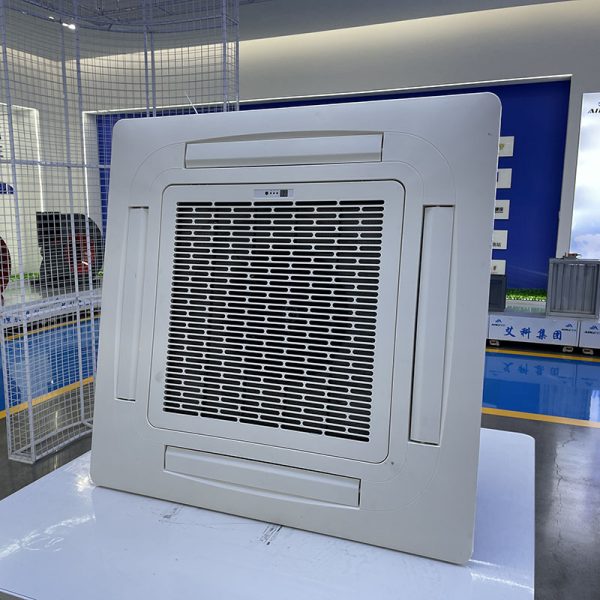

KM serious panel size			/	650*650		950*950
Maximum Allowable Working pressure			1.2Mpa
Power			AC220V/50HZ
