Description
★How it works
The core component of the heat recovery fresh air ventilator is the full heat exchanger. The full heat exchanger has a special heat exchange core, such as a honeycomb or plate-fin structure made of paper, aluminum or polymer materials. This structure can increase the contact area between the air and the heat exchange core and improve the heat exchange efficiency.
▶Shandong Aike Holding Group Co., Ltd. is a comprehensive high-tech enterprise integrating scientific research, design, production, sales and installation. With its professional level and mature technology in the field of central air-conditioning systems, it has rapidly risen in this field.
▶The main products include ventilation equipment, fresh air equipment, electromechanical equipment, fire smoke exhaust equipment, water tanks, cooling towers and other central air-conditioning systems, purification air-conditioning systems and terminal supporting products. Products are distributed all over the country.

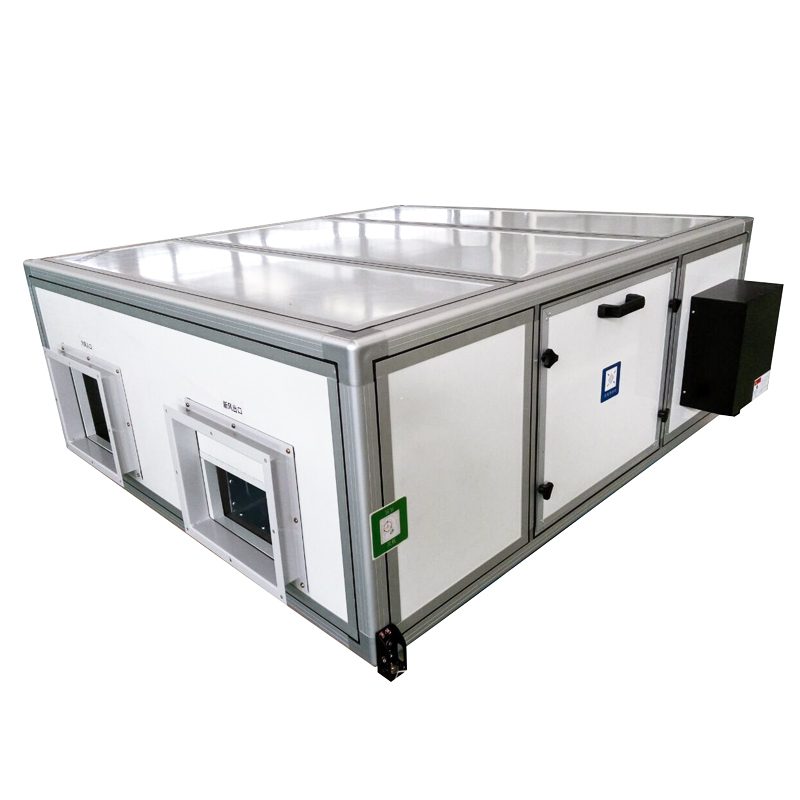

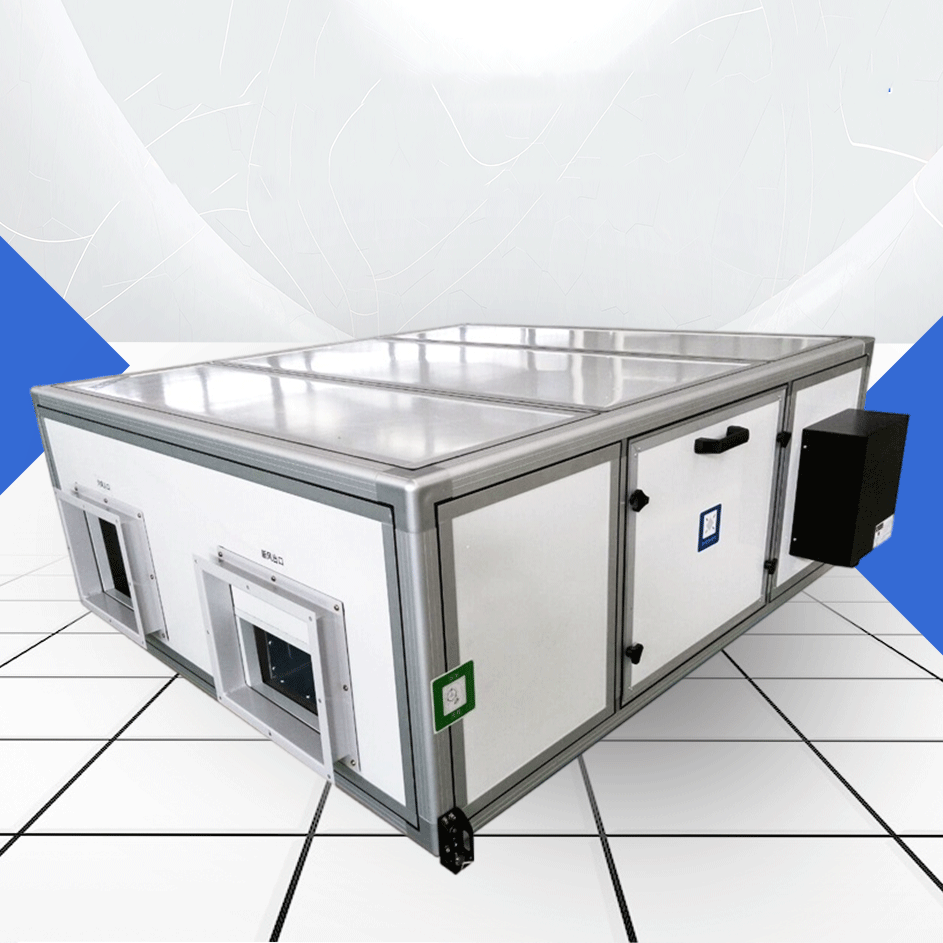

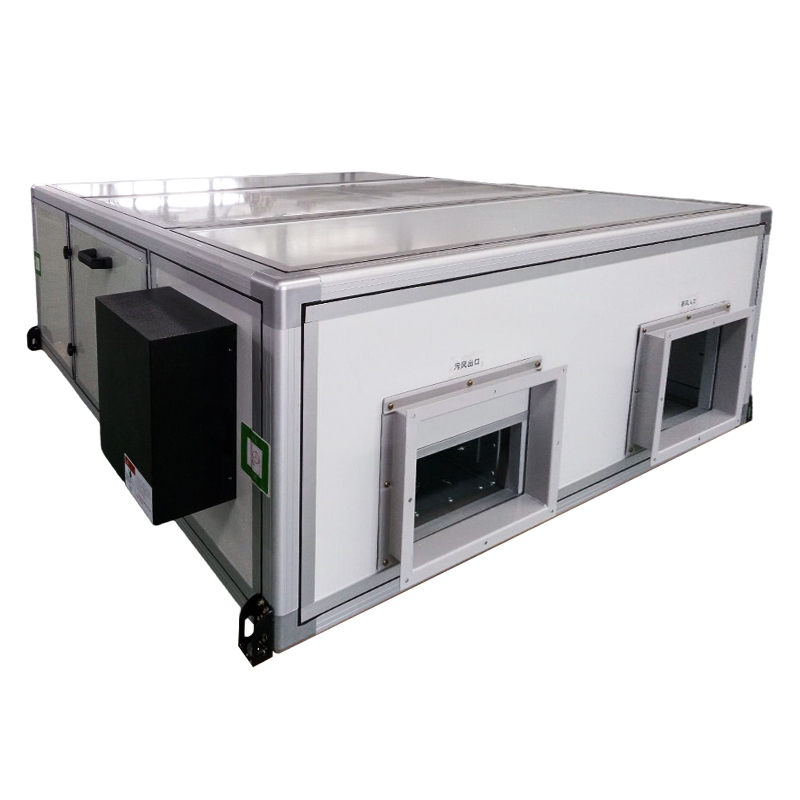

◈Model: AKXF:
◈Specification: Contact Customi-zation
◈Material: Aluminum alloy unit frame structure
◈Features: Good shock resistance,good corrosion resistance
★PRODUCT CONFIGURATION
◈UNIT FRAME
The dual-fan configuration realizes two-way ventilation,bringing in fresh outdoor air and expelling dirty gas from the room.
◈UNIT PANEL
The thickness of the box wall panel is 25mm. The wall panel steel plate is made of color steel plate and galvanized steel plate. And insulation material is filled between the plates.
◈FILTER
The primary filter is flame-retardant and anti-bacterial,with a filtration efficiency of G4 (European standard).
◈FANS AND MOTORS
We choose well -known domestic brand fans with high – efficiency high -strength impellers. The plant tests these impellers and shafts for dynamic and static balance.

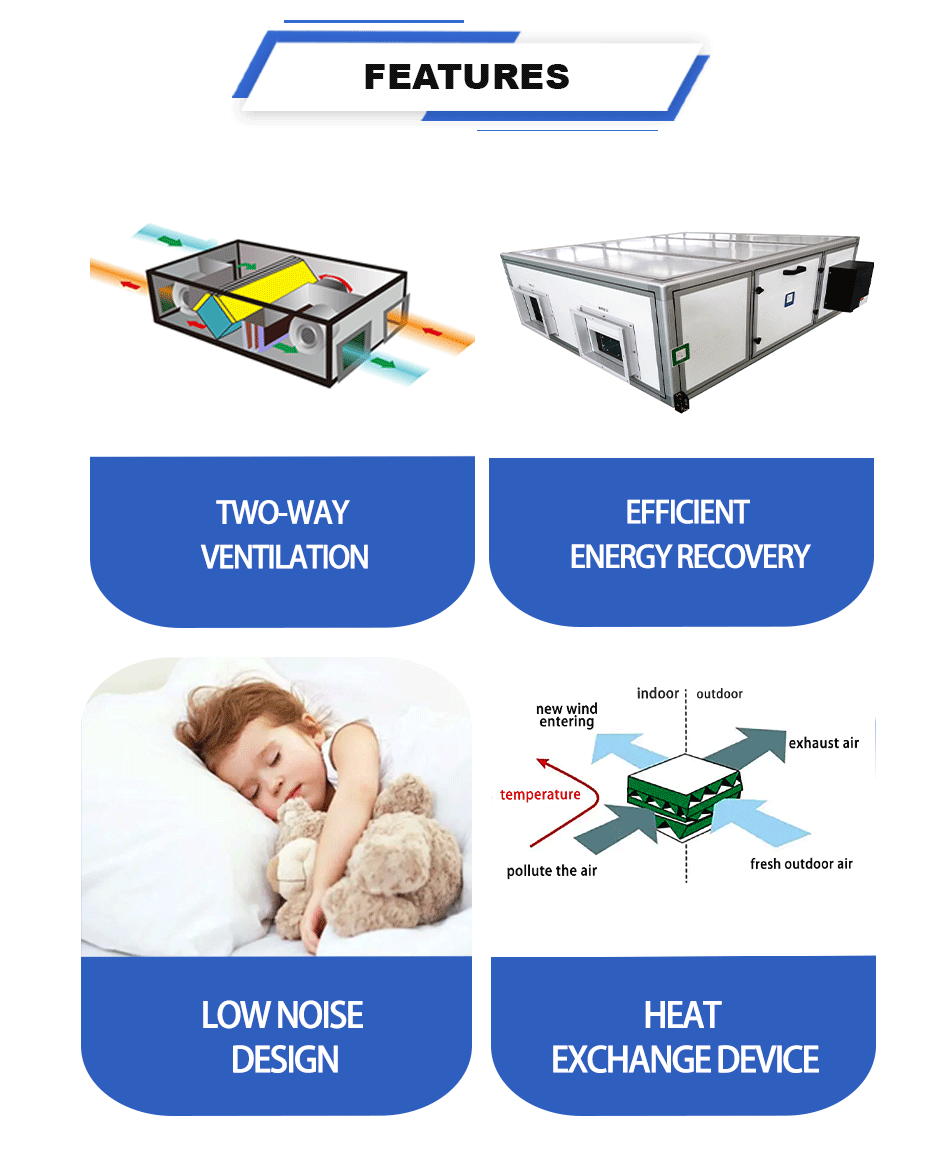

◈Two-way ventilation, multi-stage purification
Dual fan configuration, realizes two-way ventilation between indoor and outdoor, sends fresh outdoor air into the room, and discharges dirty gas from the room at the same time.
◈Efficient energy recovery
Our company has successfully developed a high-efficiency heat recovery heat exchanger using advanced foreign technology. The heat recovery efficiency is greater than 65%, the temperature efficiency is greater than 70%, and the energy consumption of fresh air processing is reduced, achieving high efficiency and energy saving.
◈Ultra-low noise
A low-noise fan specially designed for air conditioners is selected, and the machine housing is covered with a new sound-absorbing material, with a fully silent design and humanized embodiment.
◈Efficient heat exchange
The fresh air ventilator equipment adopts a cross-flow static flat plate heat exchanger. The movement directions of the cold and hot gases are perpendicular to each other, and the gas in the heat exchanger belongs to the turbulent boundary layer of convection heat exchange, so that the cold and hot gases can fully transfer heat, and the efficiency can reach more than 65%. The heat exchanger has a compact structure, no moving parts, simple maintenance, and is suitable for various occasions.
