Description

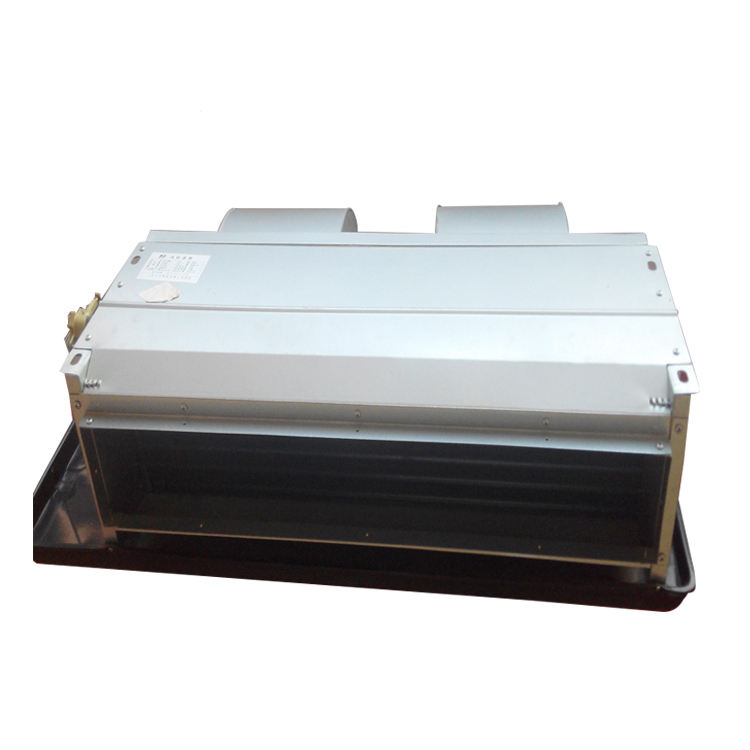

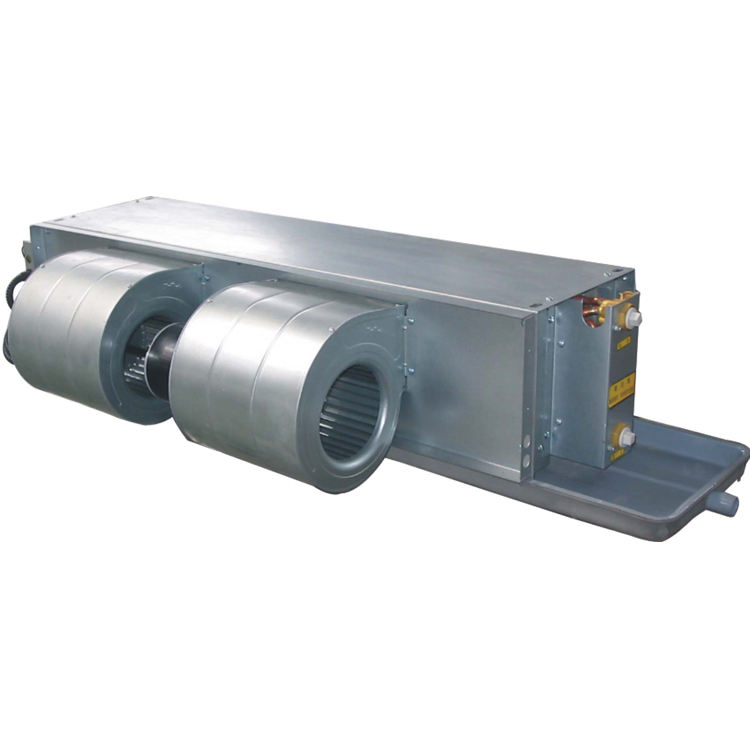

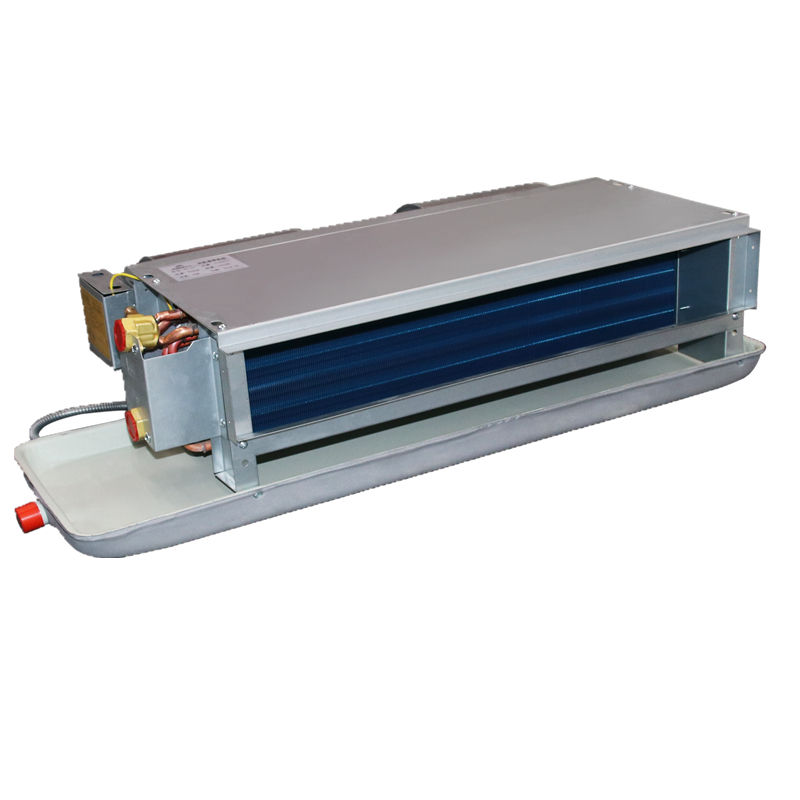

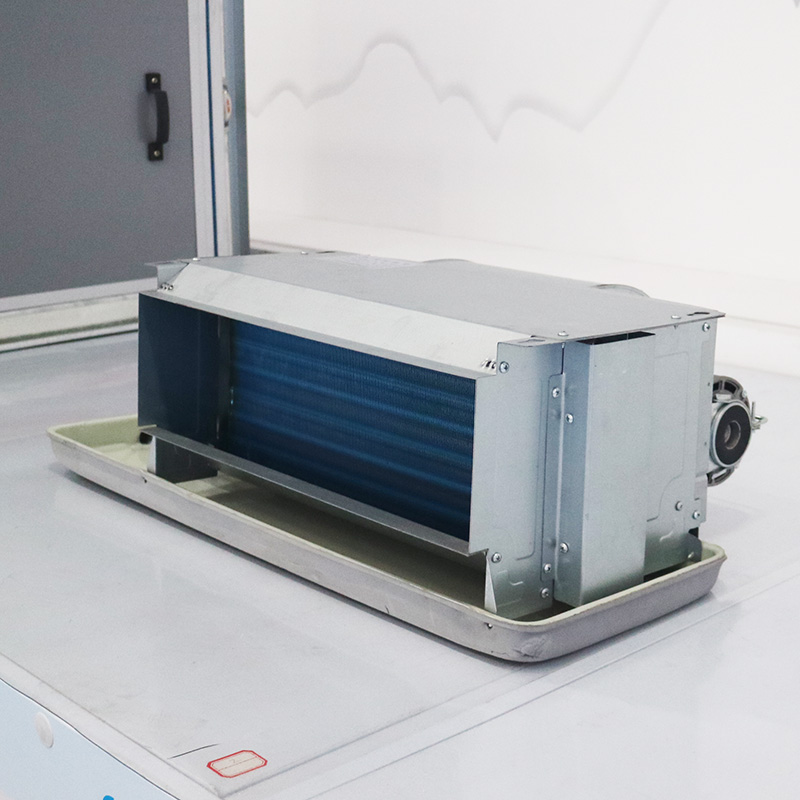

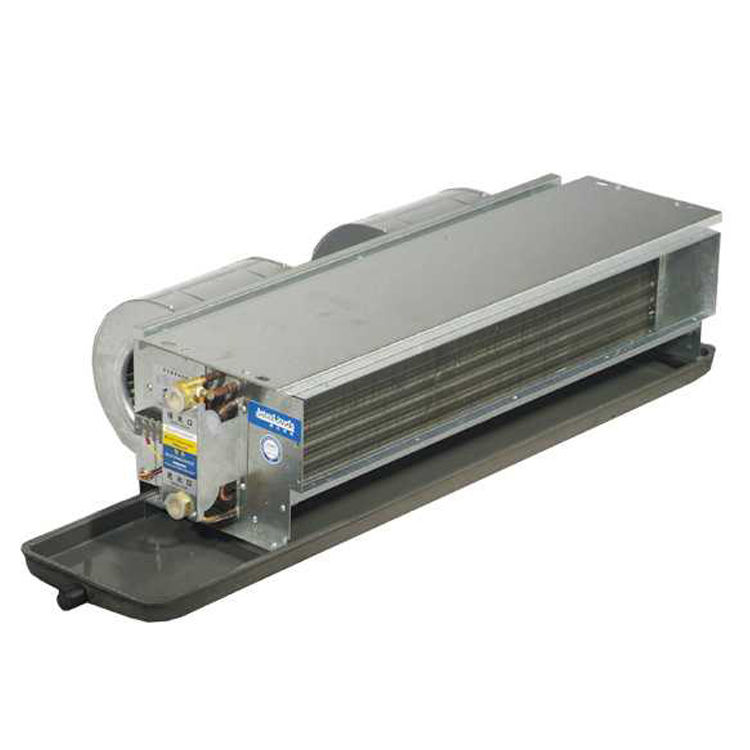

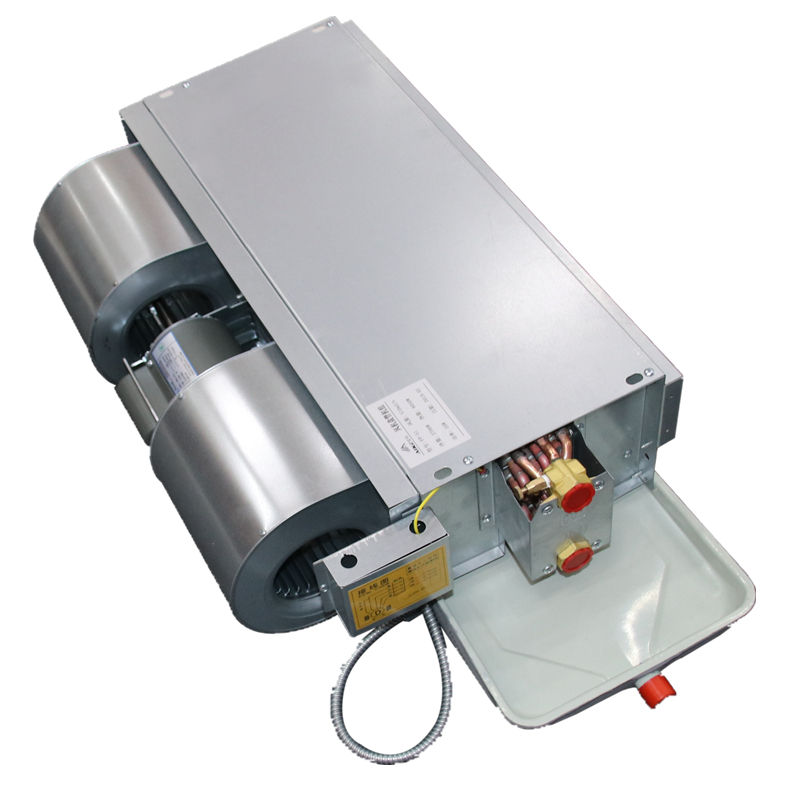

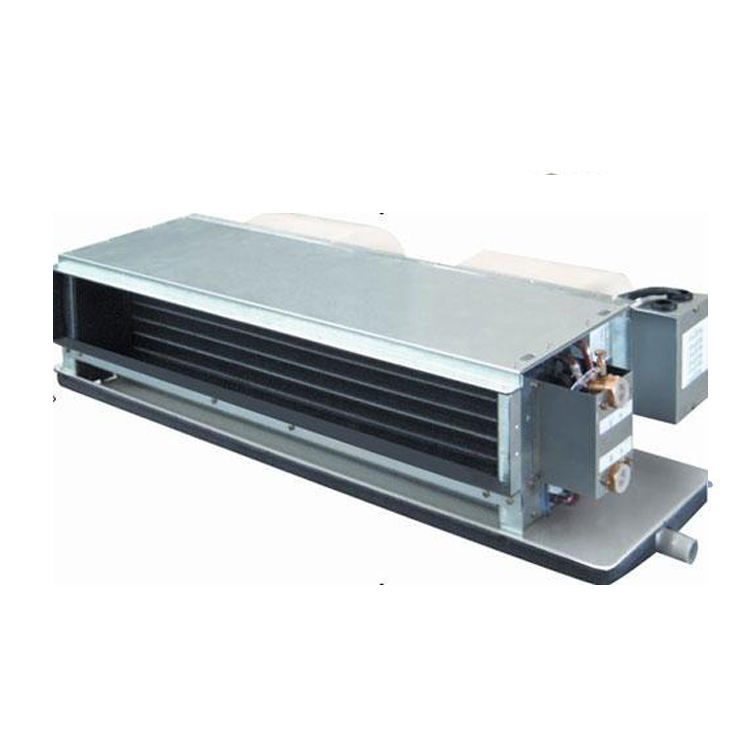

Horizental Concealed Chilled Water fan coil

The horizontal concealed chilled water fan coil is an innovative HVAC solution designed to provide efficient and discreet cooling for both residential and commercial spaces. This unit connects seamlessly to a chilled water system, delivering reliable and consistent temperature control while being hidden within ceilings or other concealed spaces. Its low-profile, horizontal design saves valuable floor space and maintains the aesthetics of any interior environment. Engineered for quiet operation and energy efficiency, it ensures a comfortable and peaceful atmosphere without high energy costs. With variable fan speeds and advanced filtration, it offers customizable airflow and improved indoor air quality. Durable construction and easy maintenance further enhance its appeal, making the horizontal concealed chilled water fan coil a versatile and practical choice for modern cooling needs.

Specification

性能 型号			FP-34	FP-51	FP-68	FP-85	FP-102	FP-136	FP-170	FP-204
Rated Air flow		H	340	510	680	850	1020	1360	1700	2040
		M	260	390	510	640	770	1020	1280	1530
		L	170	260	340	430	510	680	850	1020
Rated cooling capacity	W	H	1920	2810	3720	4660	5558	7282	9093	10980
	Kcal/h	H	1680	2420	3300	4020	4860	6250	7980	9421
Rated Heating capacity	W	H	3135	4550	5982	7360	8720	11381	14218	16750
	Kcal/h	H	2555	3724	4902	6042	7134	9376	11704	13813
Output Power(w)	12pa	H	37	52	62	76	96	134	152	189
	30pa	H	44	59	72	87	108	156	174	212
	50pa	H	49	66	84	100	118	174	210	250
dB(A) Noise	12Pa	H	37	39	41	43	45	46	48	50
	30Pa	H	40	42	44	46	47	48	50	52
	50Pa	H	42	44	46	47	49	50	52	54
Water Volume(kg/h)			319	478	638	797	956	1275	1594	1913
Water pressure loss(kpa)			≤30	≤30	≤30	≤30	≤40	≤40	≤40	≤40
Gross Weight（kg）	WA With return box WM LM KM		12	15	16	18	19	25	29	33
			14	17	19	21	23	30	34	38
			24	28	30	33	36	47	58	61
			27	32	33.5	36.5	39.5	50.5	62	65
			/	22		31		35
Inlet and Outlet pipe			3/4” Iinternal Thread
Condensate pipe			3/4” External Thread
KM serious condensate pipe			/	25mm		32mm
KM serious panel size			/	650*650		950*950
Maximum Allowable Working pressure			1.2Mpa
Power			AC220V/50HZ

Features of Horizental Concealed Chilled Water fan coil

• Efficient Cooling: Provides effective and reliable cooling by connecting to a chilled water system, ensuring consistent indoor temperature control.
• Horizontal Design: The horizontal orientation is ideal for ceiling or attic installations, saving floor space and maintaining a clean, uncluttered interior look.
• Concealed Installation: Designed to be hidden within ceilings or other spaces, offering a discreet cooling solution that does not interfere with interior aesthetics.
• Compact and Slim Profile: Features a low-profile design that fits easily into tight spaces, making it suitable for various architectural requirements.
• Variable Fan Speeds: Comes with adjustable fan speed settings, allowing for customizable airflow and precise temperature control to enhance comfort.
• Quiet Operation: Engineered for minimal noise, ensuring a peaceful and comfortable indoor environment without disruption.
• Energy Efficiency: Utilizes advanced technology to optimize energy usage, reducing operational costs and contributing to environmental sustainability.
• Enhanced Air Quality: Equipped with filters and advanced airflow mechanisms to improve indoor air quality by trapping dust, pollen, and other allergens.
• Durable Construction: Made from high-quality materials for long-lasting durability and reliable performance over time.
• Easy Maintenance: Designed with accessible components for straightforward maintenance and servicing, ensuring long-term efficiency and performance.
• Versatile Applications: Suitable for a wide range of settings, including residential, commercial, and institutional buildings.
• Integration with Control Systems: Compatible with modern thermostat and building management systems for precise temperature control and enhanced operational convenience.
