Description
Industrial centrifugal fans

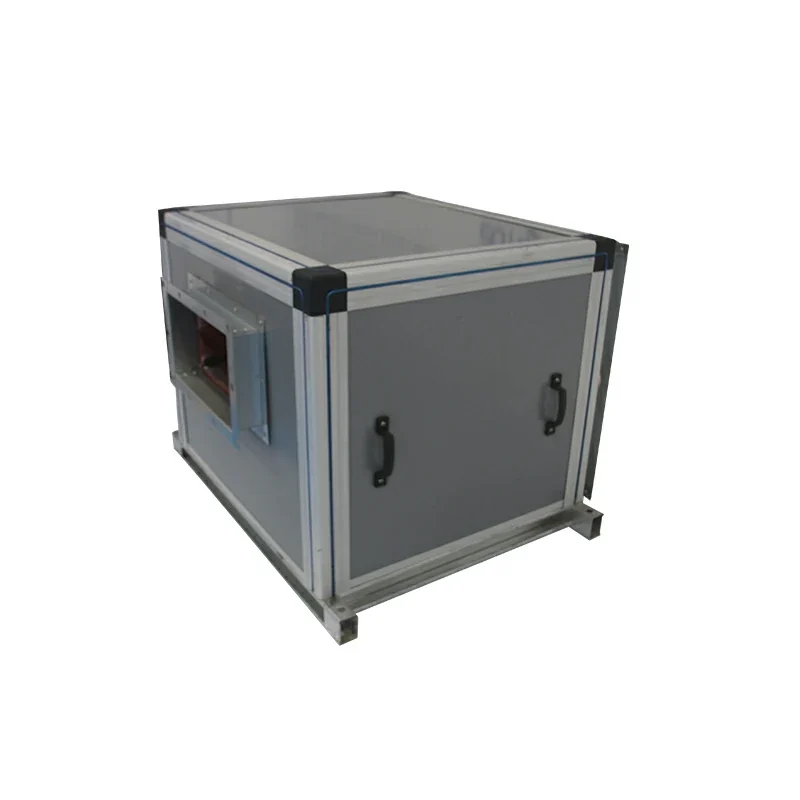

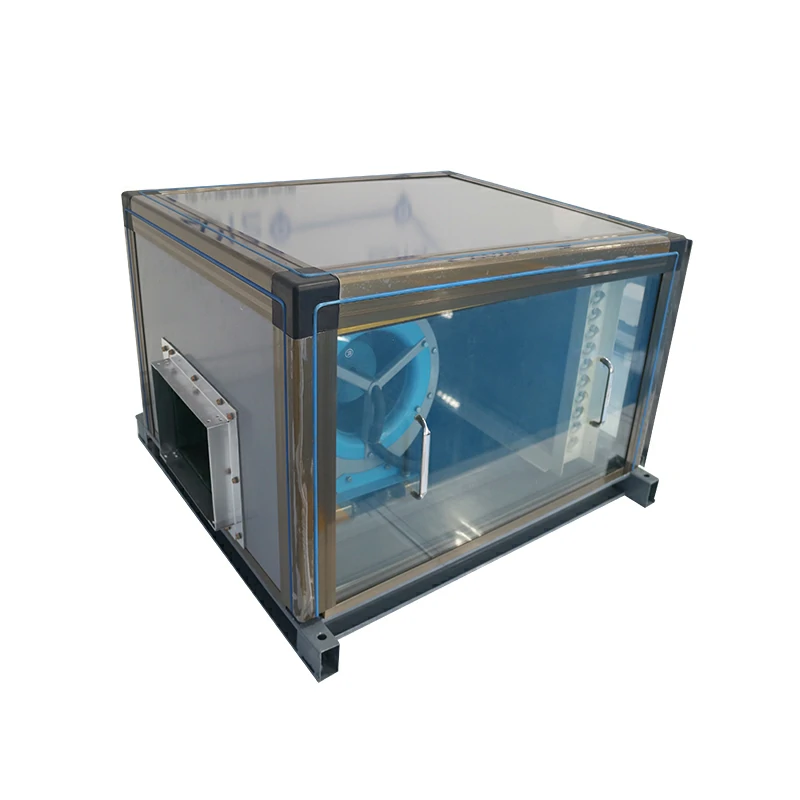

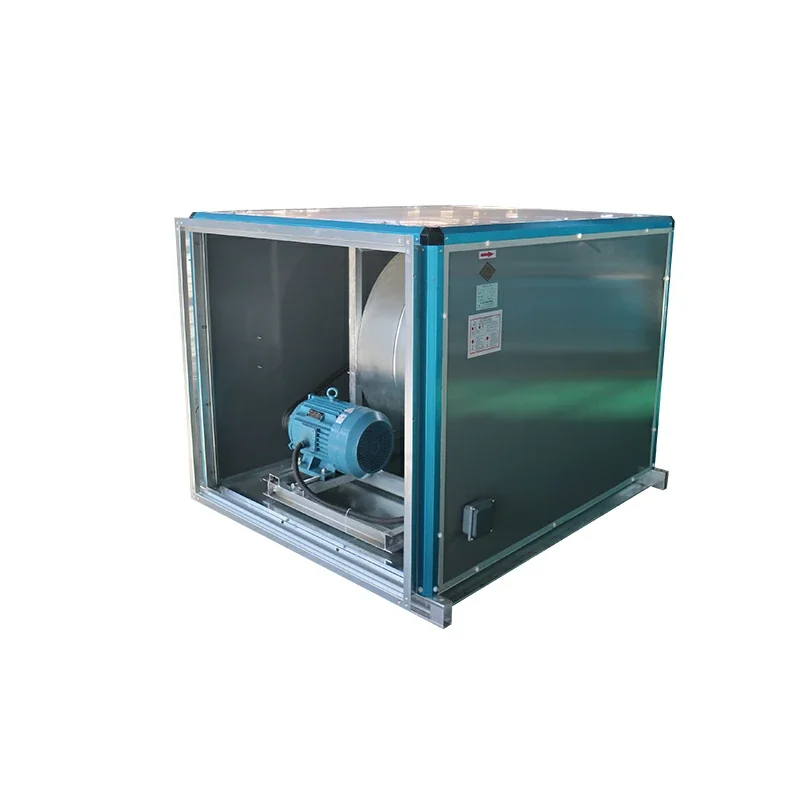

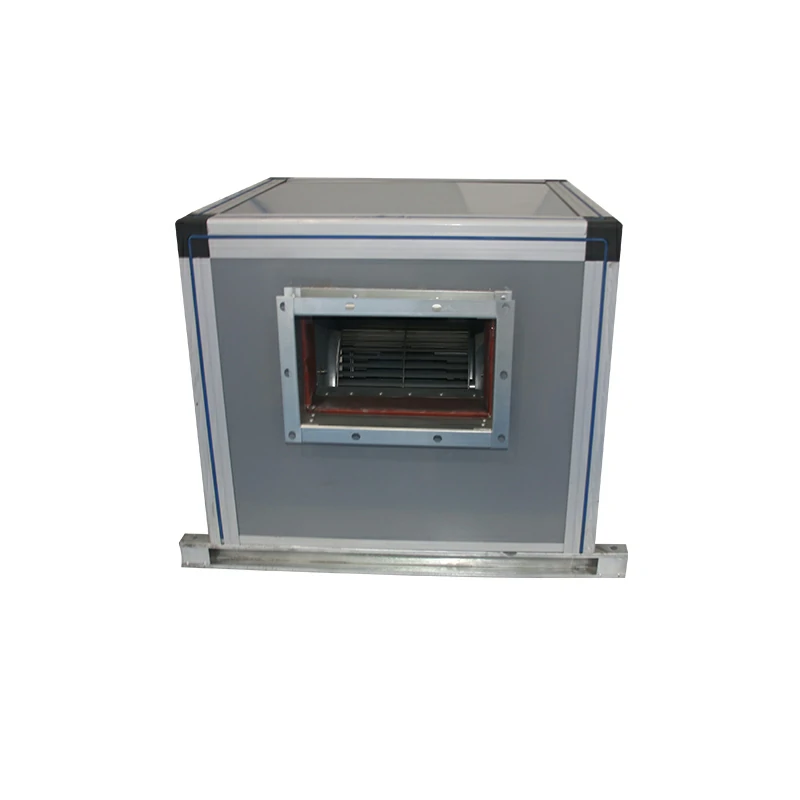

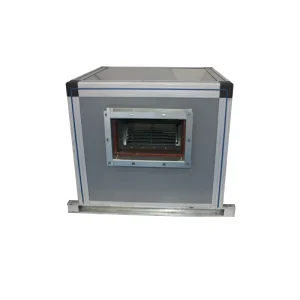

Industrial cabinet centrifugal fans is a high-efficiency, low-noise box-type centrifugal fan. The product consists of a low-noise forward-inclined multi-wing centrifugal fan, motor, bearings,transmission parts, silencer box, etc. Depending on the installation location,12 different angles of inlet and outlet air outlet positions are provided to meet the needs of users in different installation environments. According to the fire protection and ventilation requirements, it is divided into two types: type A and type B. The type A motor is installed outside the box, and the type B motor is installed inside the box.
Specification
| No. | Speed
(r/min) |
Air Flow
(m³/h) |
Total pressure
(Pa) |
Static pressure
(Pa) |
Moter power
(kw) |
Noise
dB(A) |
Weight
(KG) |
| 9’’ | 1600 | 2270 | 538 | 499 | 0.75 | 61 | 85 |
| 1450 | 2050 | 447 | 398 | 0.55 | 59 | 84 | |
| 1250 | 1770 | 333 | 309 | 0.55 | 56 | 84 | |
| 10’’ | 1600 | 2910 | 632 | 590 | 1.1 | 63 | 110 |
| 1450 | 2630 | 525 | 491 | 0.75 | 60 | 105 | |
| 1250 | 2270 | 391 | 365 | 0.75 | 57 | 105 | |
| 12’’ | 1250 | 4550 | 631 | 579 | 1.5 | 64 | 132 |
| 1100 | 4000 | 488 | 448 | 1.5 | 61 | 140 | |
| 1000 | 3630 | 403 | 370 | 1.1 | 60 | 129 |
Application
1.Environmental protection equipment, drying equipment, kitchen equipment, spraying equipment and other mechanical supporting equipment: Industrial cabinet centrifugal fans are used for ventilation and smoke exhaust in these equipment to ensure indoor air quality.
2.Underground garages, mines, theaters, and buildings: cabinet-type Industrial cabinet centrifugal fans are used for ventilation and smoke exhaust in these places to maintain good air flow.
3.Firefighting and smoke exhaust: The A-type Industrial cabinet centrifugal fan has passed the high temperature resistance test of the National Fire Equipment Supervision and Quality Inspection Center and can operate continuously for more than 60 minutes under high temperature conditions of 300°C. It is mainly used for firefighting and smoke exhaust.
4.Ventilation: The motor of the B-type Industrial cabinet centrifugal fan is installed in the box and is mainly used for ventilation.
5.In the production workshops and underground mines of industrial and mining enterprises: Industrial cabinet centrifugal fans are used for ventilation, dust exhaust and air supply.
6.Air-conditioning and ventilation systems in hotels, restaurants, shopping malls, stations, etc.: ensure indoor air circulation and provide a comfortable environment.
7.Car mechanic’s gas mask: cabinet centrifugal fan boxes can also be used for this application.
Working principle
The industrial centrifugal fans is based on the principle of converting kinetic energy into potential energy. It uses a high-speed rotating impeller to accelerate the gas, then decelerates and changes the flow direction, so that the kinetic energy is converted into potential energy (pressure). In a single-stage centrifugal fan, the gas enters the impeller from the axial direction, changes to the radial direction when the gas flows through the impeller, and then enters the diffuser. In the diffuser, the gas changes its flow direction and the cross-sectional area of the pipe increases to decelerate the gas flow. This deceleration converts kinetic energy into pressure energy. The pressure increase mainly occurs in the impeller and secondarily during the pressure expansion process. In multi-stage centrifugal fans, a reflux is used to direct the airflow into the next impeller to generate higher pressure.
Company Profile
Shandong Aike Group is a modern enterprise integrating the design, research and development, sales and maintenance of water tank varieties, with more than ten years of supply experience. The company covers an area of 10,000 square meters and has more than 200 employees,30% of whom are excellent technical personnel. It also has a sales team that is proficient in e-commerce.
First of all, the company takes the “Belt and Road” initiative as its guide and implements its “green development” vision. Shandong Aike Group adheres to the business philosophy of “customer first, innovation-driven” and cultivates a corporate culture of “honesty and trustworthiness”.
Secondly, in recent years, its performance has continued to grow and its expansion has been steady. This trajectory has cemented lasting trust among clients and fostered lasting partnerships. In the current tide of economic development and fierce market competition, the company cherishes its hard-won honors. Shandong Aike Group unswervingly follows the road of industrialization and modernization, relies on the diligence and wisdom of “Aike” people, and unswervingly creates products with reliable quality and excellent service.
Finally, Shandong Aike Group is a leading manufacturer dedicated to providing high-quality fans to the world. Shandong Aike Group adheres to a firm commitment to pursuing excellence and specializes in the production of innovative and reliable fans, including axial flow fans, mixed flow fans, roof fans, heaters, etc.
FAQ
1. Are you a factory or a trading company?
Yes, we are manufacturer.
2. What protection is there if the industrial centrifugal fans is broken?
The industrial centrifugal fans has a one-year warranty. If a malfunction occurs, normally our technicians will
Use customer feedback to identify problem areas. If it is a quality problem, we will replace the parts for free.
3. How about the documents after shipment?
After shipment, we will send all original documents to you via DHL, including packing list, commercial invoice, bill of lading and others
Required certificates.
4. How long is the delivery time?
7-10 days for standard water tanks below 100 cubic meters; for non-standard water tanks and according
Customized water tanks according to customer’s specific requirements will take 15 to 30 days.
5. How about the payment method?
Wire transfer (T/T). L/C at sight.
6. Do you arrange delivery of the machine?
Yes, dear customer, for FOB or CIF price, we will arrange shipment for you. For EXW price, customer needs
Arrange delivery by yourself or through an agent.
7. How about the packaging?
Solid seaworthy plywood box packaging with steel straps saves as much container loading space as possible.
