Description
★How it works
The intermediate heat medium split energy recovery air handling unit uses the intermediate heat medium solution as the intermediate heat medium to recover the cold and heat in the exhaust air, reduce the load of the fresh air system, reduce the operating cost of the entire air conditioning system, and avoid the secondary pollution of the fresh air by harmful gases in the exhaust air, ensuring that clean and healthy fresh air is delivered to the room.
▶Shandong Aike Holding Group Co., Ltd. is a comprehensive high-tech enterprise integrating scientific research, design, production, sales and installation. With its professional level and mature technology in the field of central air-conditioning systems, it has rapidly risen in this field.
▶The main products include ventilation equipment, fresh air equipment, electromechanical equipment, fire smoke exhaust equipment, water tanks, cooling towers and other central air-conditioning systems, purification air-conditioning systems and terminal supporting products. Products are distributed all over the country.

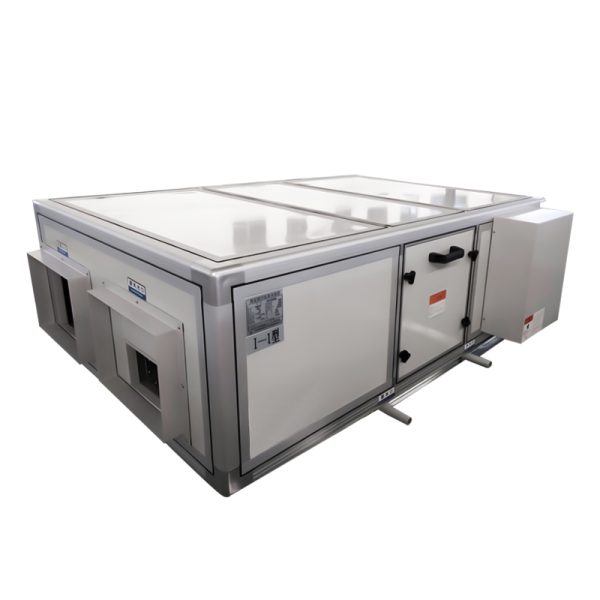

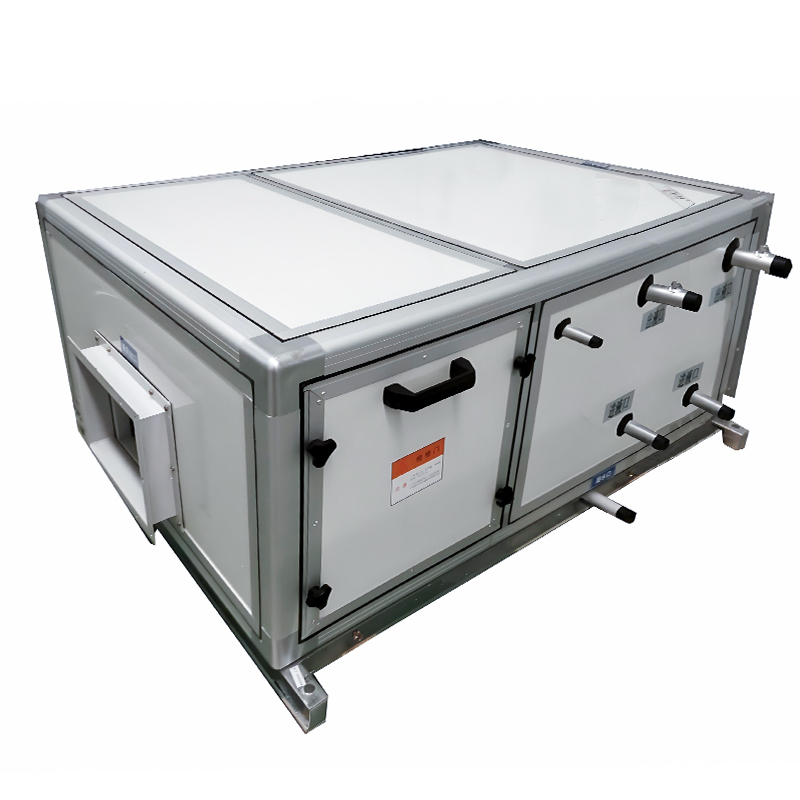

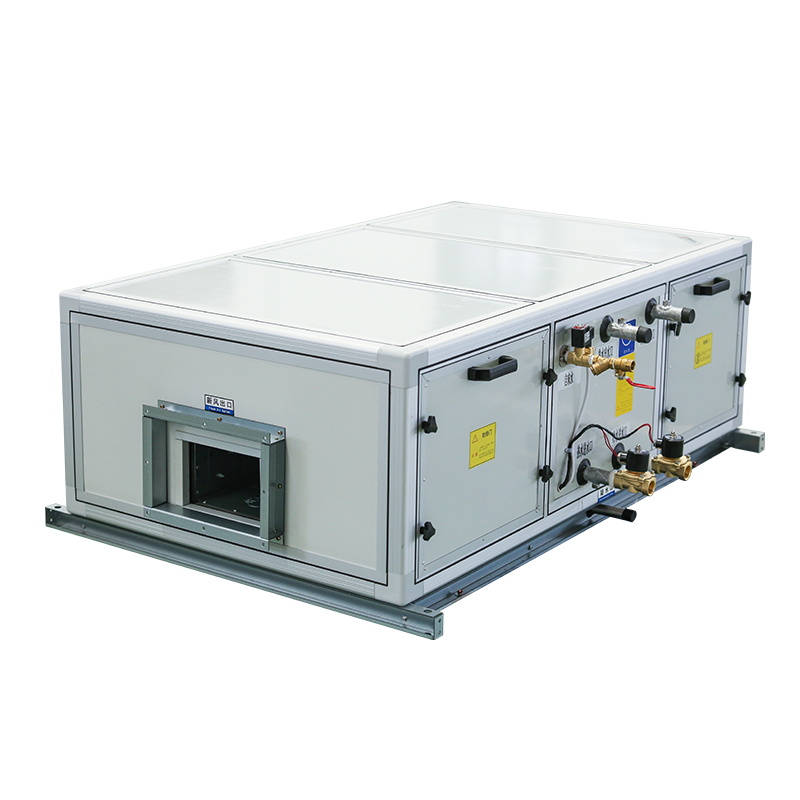

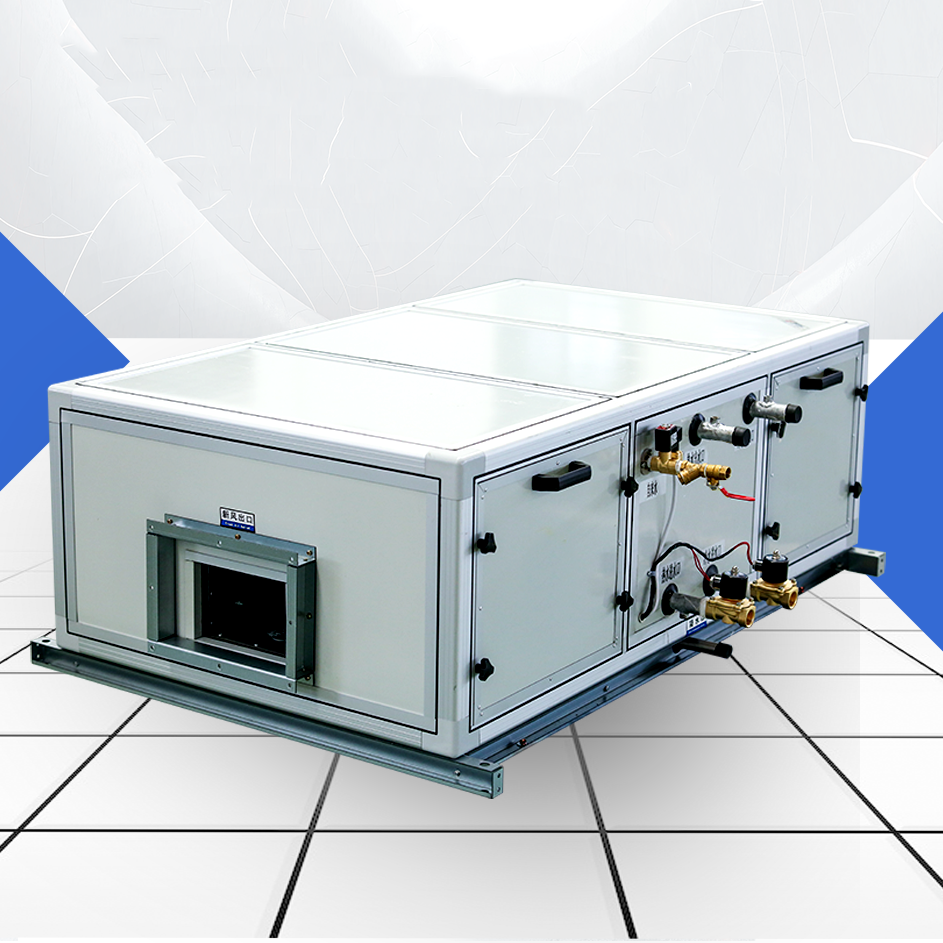

◈Model: AKXF-D-Z
◈Specification: Contact Customi-zation
◈Material: Aluminum alloy unit frame structure
◈Features: Good shock resistance,good corrosion resistance
★PRODUCT CONFIGURATION
◈UNIT FRAME
High-quality high-strength aluminum alloy is used as the frame structure of the unit, with low air leakage rate, good anti-cold bridge performance, beautiful appearance and good corrosion resistance.
◈UNIT PANEL
The thickness of the box wall panel is 25mm. The wall panel steel plate is made of color steel plate and galvanized steel plate. And insulation material is filled between the plates.
◈FILTER
The primary filter is flame-retardant and anti-bacterial,with a filtration efficiency of G4 (European standard).
◈FANS AND MOTORS
We choose well -known domestic brand fans with high – efficiency high -strength impellers. The plant tests these impellers and shafts for dynamic and static balance.

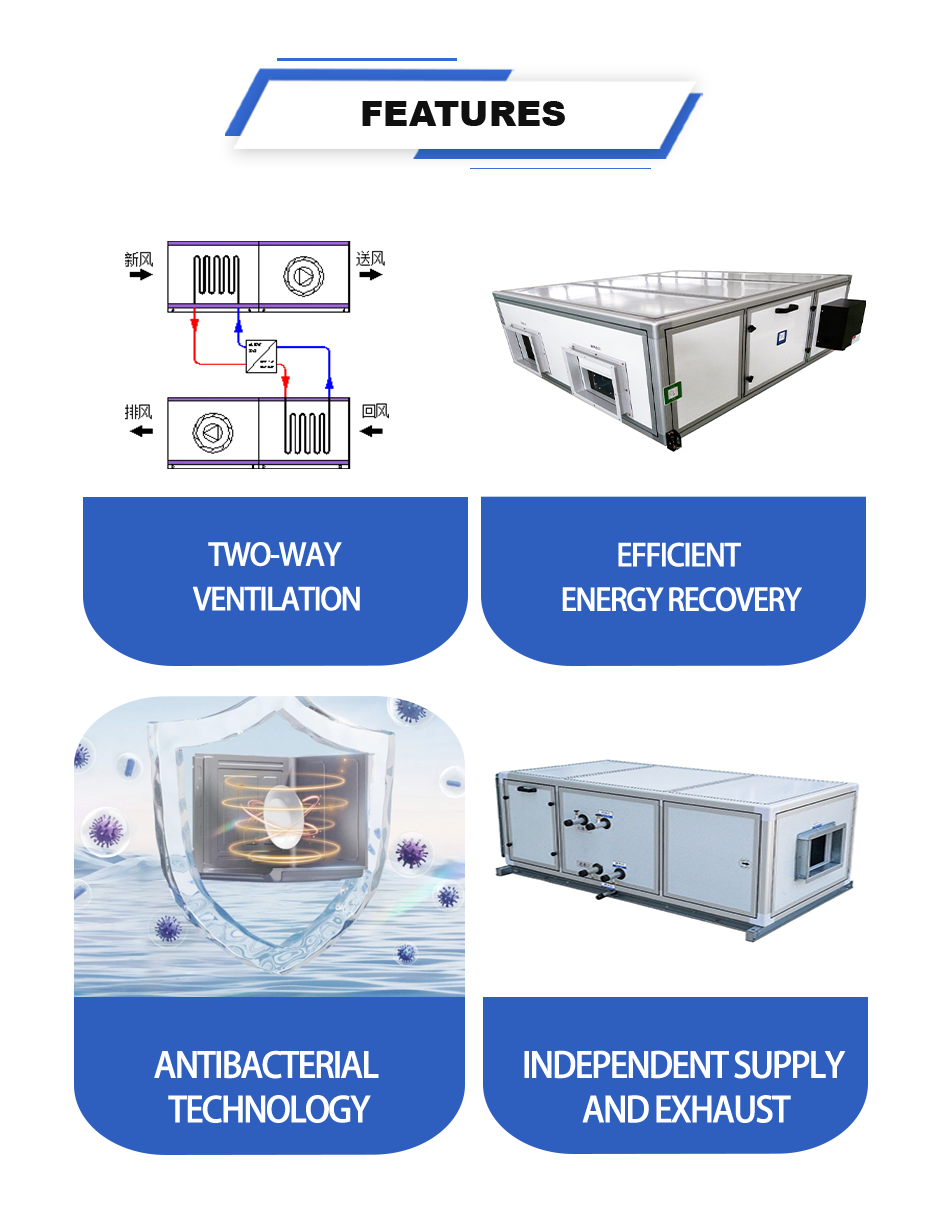

◈Two-way ventilation, “0” cross contamination
The supply and exhaust fan units are independently set, and the new and exhaust systems are completely independent to achieve no cross contamination
◈Efficient energy recovery
Using the intermediate heat medium as the carrier of energy recovery, the intermediate heat medium solution has unique advantages compared to traditional heat recovery forms, which greatly improves the heat exchange efficiency of the system, and is more energy-saving and environmentally friendly.
◈Independent settings for supply and exhaust
The intermediate heat medium solution heat recovery and exhaust fan units can be placed separately, which is convenient for installation and flexible in layout, occupies a small space, and the plane distance is not restricted.
◈High-end intelligent control
The intermediate heat medium heat recovery and exhaust fan units adopt high-end intelligent control, which can realize the simultaneous opening and closing of the core and exhaust fan units.
◈Antibacterial control technology
Environmentally friendly materials are used: The unit’s thermal insulation material is made of fluorine-free, flame-retardant, and environmentally friendly polystyrene thermal insulation material. In addition to ensuring excellent anti-condensation performance, no harmful volatile gases are generated during the unit’s service life to prevent pollution of the air quality in the air-conditioning service area.
