Vertical exposed Chilled Water fan coil for heating and cooling

Vertical exposed Chilled Water fan coil for heating and cooling

Name: Vertical exposed Chilled Water fan coil

Model: FP-68, FP-85, FP-102.

Air Flow: 170-2380cbm/h

Cooling Capacity: 1920-12860 W

Heating Capacity: 3135-19430 W

Noise: 37-56 dB

Water Volume: 319-2232 kg/h

Function: Heating, Cooling

Price: 100-180 USD Per Set

Email: sales@aikegroupco.com

Whatsapp: +86-18653123650

Description

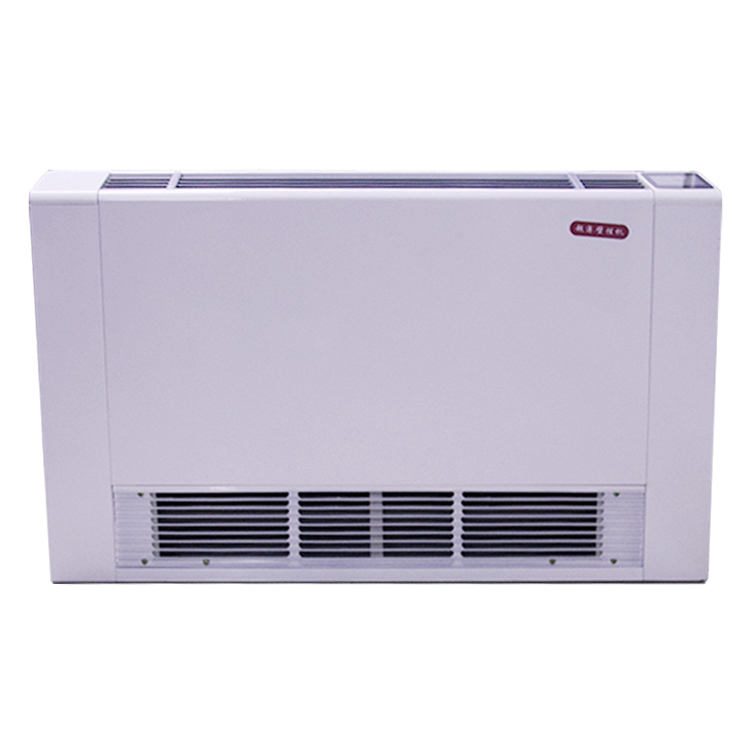

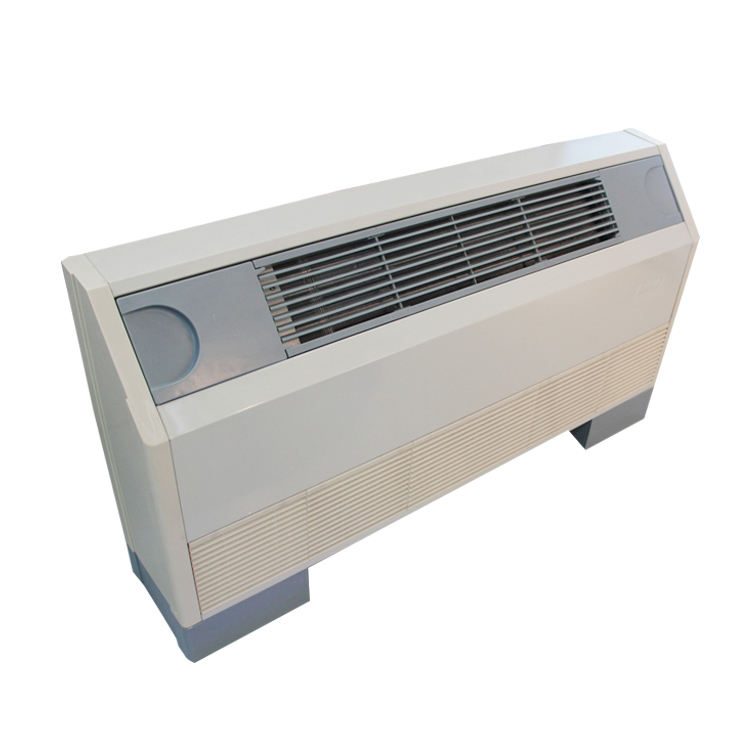

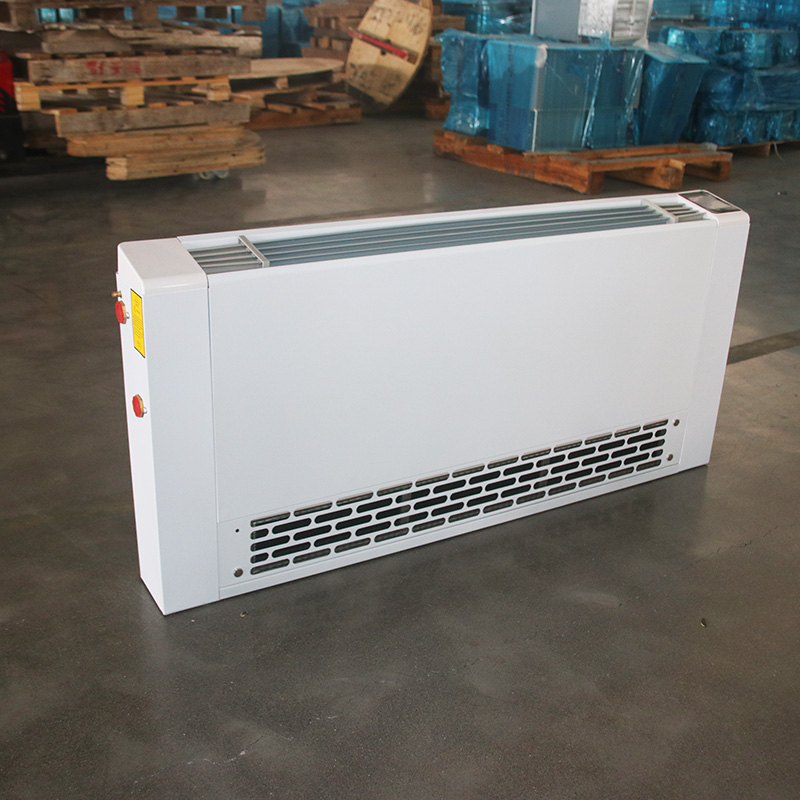

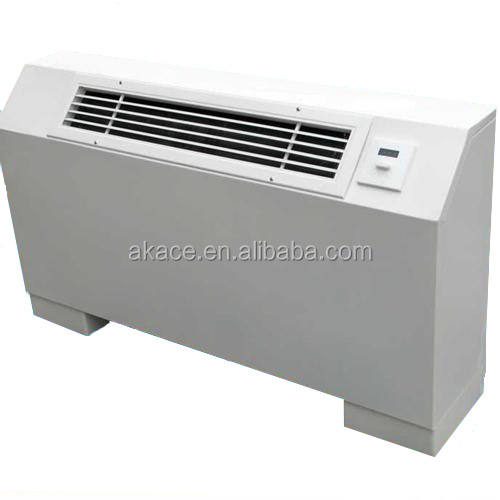

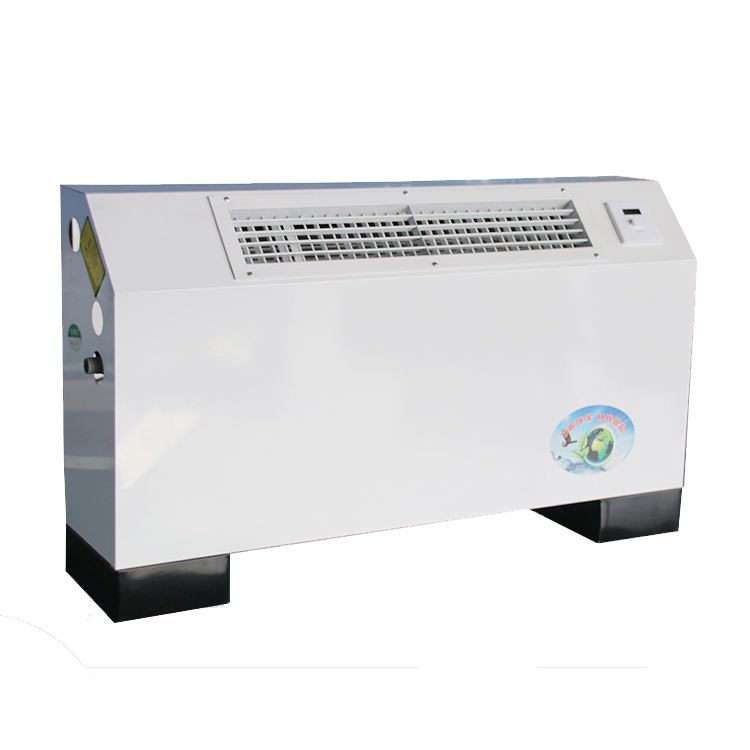

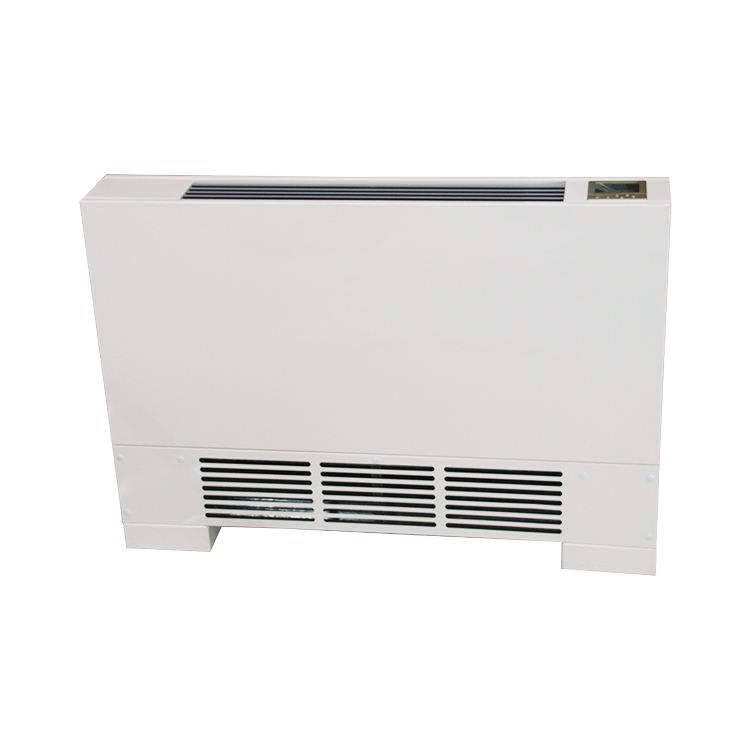

Vertical exposed Chilled Water fan coil

The vertical exposed chilled water fan coil is a highly efficient and versatile HVAC solution designed for both residential and commercial applications. Mounted vertically and exposed for easy access, this fan coil unit connects to a chilled water system to deliver precise and reliable cooling. Its sleek and compact design allows it to blend seamlessly into any interior space while ensuring optimal air distribution and comfort. Equipped with advanced features such as variable fan speeds, quiet operation, and energy-efficient performance, the vertical exposed chilled water fan coil provides effective temperature control and enhanced indoor air quality. Its user-friendly design facilitates easy installation, maintenance, and servicing, making it a practical choice for a wide range of cooling needs.

Specification

性能 型号 FP-34 FP-51 FP-68 FP-85 FP-102 FP-136 FP-170 FP-204
Rated Air flow H 340 510 680 850 1020 1360 1700 2040
M 260 390 510 640 770 1020 1280 1530
L 170 260 340 430 510 680 850 1020
Rated cooling capacity W H 1920 2810 3720 4660 5558 7282 9093 10980
Kcal/h H 1680 2420 3300 4020 4860 6250 7980 9421
Rated

Heating capacity

W H 3135 4550 5982 7360 8720 11381 14218 16750
Kcal/h H 2555 3724 4902 6042 7134 9376 11704 13813
Output Power(w) 12pa H 37 52 62 76 96 134 152 189
30pa H 44 59 72 87 108 156 174 212
50pa H 49 66 84 100 118 174 210 250
dB(A)

Noise

12Pa H 37 39 41 43 45 46 48 50
30Pa H 40 42 44 46 47 48 50 52
50Pa H 42 44 46 47 49 50 52 54
Water Volume(kg/h) 319 478 638 797 956 1275 1594 1913
Water pressure loss(kpa) ≤30 ≤30 ≤30 ≤30 ≤40 ≤40 ≤40 ≤40
Gross Weight(kg) WA

With return box

WM

LM

KM

12 15 16 18 19 25 29 33
14 17 19 21 23 30 34 38
24 28 30 33 36 47 58 61
27 32 33.5 36.5 39.5 50.5 62 65
/ 22 31 35
Inlet and Outlet pipe 3/4” Iinternal Thread
Condensate pipe 3/4” External Thread
KM serious condensate pipe / 25mm 32mm
KM serious panel size / 650*650 950*950
Maximum Allowable Working pressure 1.2Mpa
Power AC220V/50HZ


Features of Vertical Exposed Chilled Water Fan Coil

  • Efficient Cooling: Provides effective cooling by connecting to a chilled water system, ensuring consistent and reliable temperature control.
  • Vertical Design: The vertical orientation saves floor space and allows for easy integration into a variety of interior spaces, making it ideal for both residential and commercial settings.
  • Exposed Configuration: The exposed design facilitates easy access for maintenance and servicing, ensuring long-term performance and reliability.
  • Compact Size: Sleek and compact design enables seamless blending with interior decor while maximizing space efficiency.
  • Variable Fan Speeds: Equipped with multiple fan speed settings to provide customizable airflow and temperature control, enhancing comfort.
  • Quiet Operation: Designed for low-noise performance, ensuring a peaceful and comfortable environment without disturbance.
  • Energy Efficiency: Utilizes advanced technology to optimize energy consumption, reducing operational costs and environmental impact.
  • Enhanced Air Quality: Features filters and advanced airflow mechanisms that improve indoor air quality by reducing dust and allergens.
  • Durable Construction: Built with high-quality materials for durability and longevity, ensuring reliable performance over time.
  • Easy Installation: User-friendly design simplifies the installation process, making it suitable for both new constructions and retrofit projects.
  • Versatile Applications: Ideal for a wide range of applications, including homes, offices, hotels, and other commercial buildings.
  • Thermostat Compatibility: Can be integrated with modern thermostat systems for precise temperature control and enhanced convenience.
