vertical exposed fan coil units

Description

Vertical exposed fan coil units

Vertical exposed fan coil units is mainly composed of fan, heat exchanger (coil), condensate disc, shell and controller, which is suitable for centralized air conditioning system. Because the fan coil produced by our factory is improved after full market research and repeated experiments, it is advanced in design, complete in variety, superior in performance, and widely used. It is usually used in various hotels, apartments, restaurants, hospitals, commercial buildings, etc., which require low noise and flexible temperature regulation.

Feature

1. High efficiency and sufficient energy
The coil adopts high-quality seamless copper tube and aluminum sinusoidal corrugated heat sink, which are formed by hydraulic or mechanical expansion tube and the fin and copper tube are absolutely tight, which can play the best effect.
2. Large air volume, low noise
The use of ultra-wide Angle volute, multi-blade centrifugal wind turbine, wind turbine and motor a variety of reasonable matching, low noise, can meet the needs of various units
3. Safe and reliable, long life
The motor is a B-class induction motor, built-in temperature rise protector, generally will not burn the motor without special circumstances: each unit coil is leak detected by high pressure, so as to ensure that the unit will not produce water leakage phenomenon.
4. The product is widely used in hotels, office buildings, shopping malls, hospitals, restaurants, exhibition halls and other low-noise places, which can better meet people’s requirements for comfort.

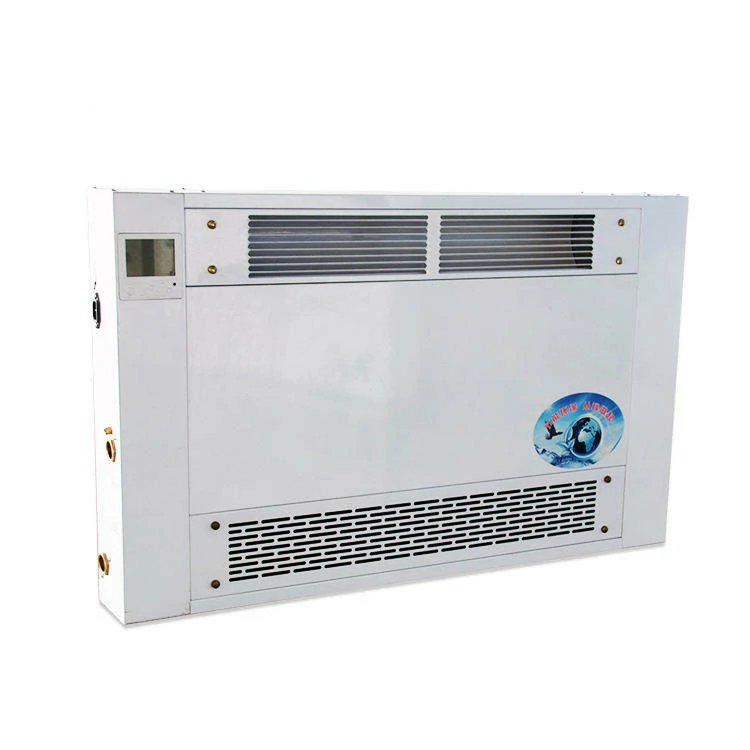

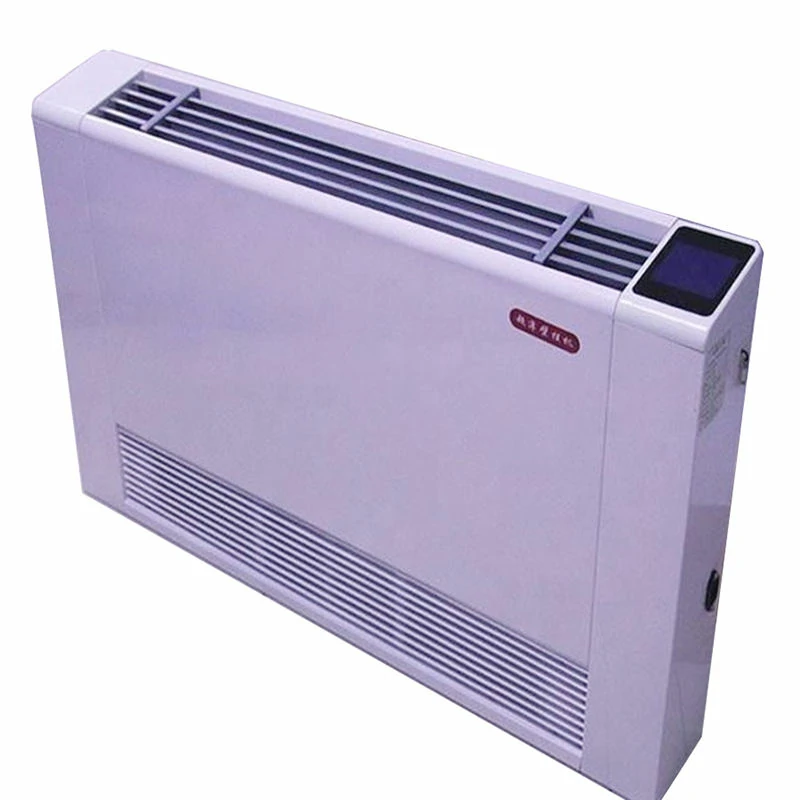

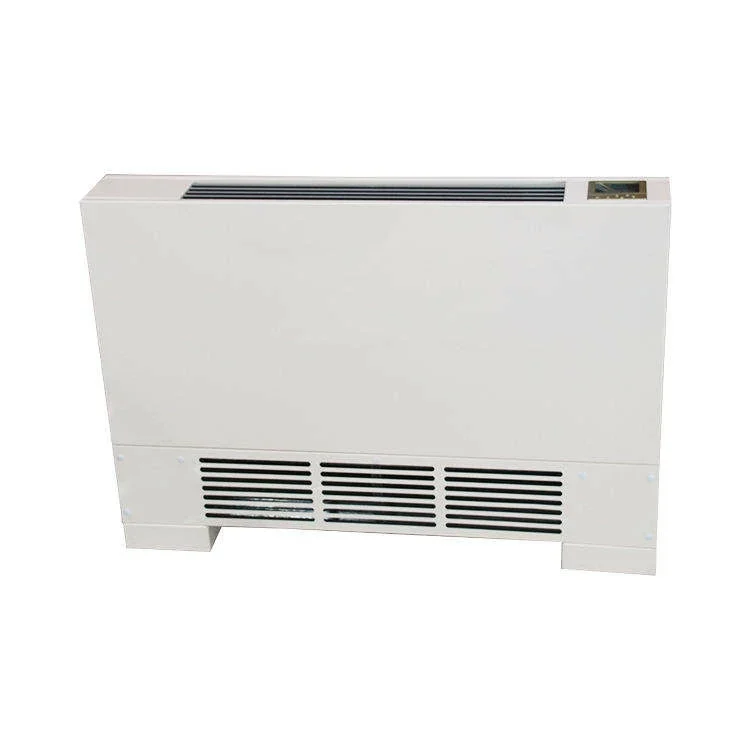

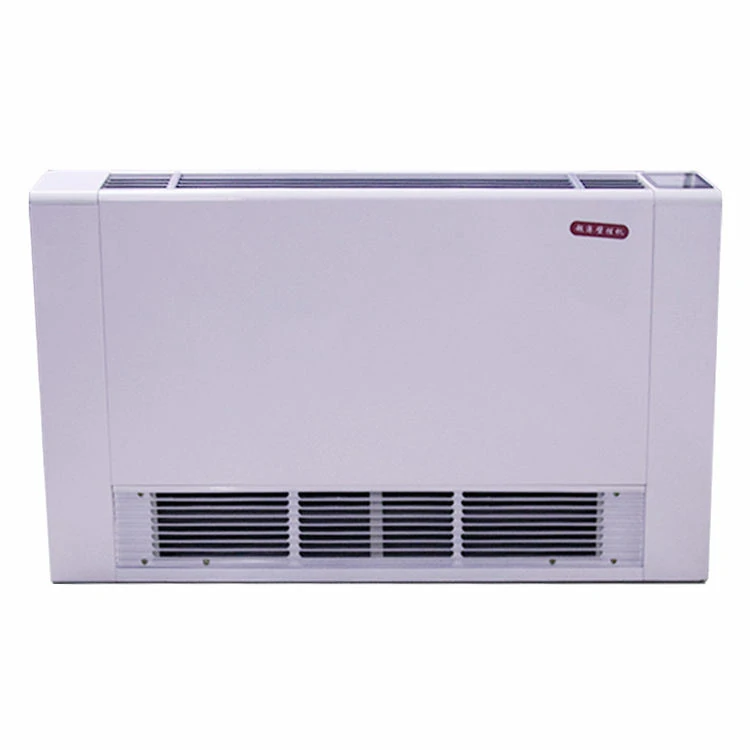

Product Picture

Specification

Performance type			FP-34	FP-51	FP-68	FP-85	FP-102	FP-136	FP-170	FP-204
Rated Air flow		H	340	510	680	850	1020	1360	1700	2040
		M	260	390	510	640	770	1020	1280	1530
		L	170	260	340	430	510	680	850	1020
Rated cooling capacity	W	H	1920	2810	3720	4660	5558	7282	9093	10980
Rated cooling capacity	Kcal/h	H	1680	2420	3300	4020	4860	6250	7980	9421
Rated Heating capacity	W	H	3135	4550	5982	7360	8720	11381	14218	16750
Rated Heating capacity	Kcal/h	H	2555	3724	4902	6042	7134	9376	11704	13813
Output Power(w)	12pa	H	37	52	62	76	96	134	152	189
	30pa	H	44	59	72	87	108	156	174	212
	50pa	H	49	66	84	100	118	174	210	250
dB(A) Noise	12Pa	H	37	39	41	43	45	46	48	50
	30Pa	H	40	42	44	46	47	48	50	52
	50Pa	H	42	44	46	47	49	50	52	54
Water Volume(kg/h)			319	478	638	797	956	1275	1594	1913
Water pressure loss(kpa)			≤30	≤30	≤30	≤30	≤40	≤40	≤40	≤40
Gross Weight（kg）	WA With return box WM LM KM		12	15	16	18	19	25	29	33
			14	17	19	21	23	30	34	38
			24	28	30	33	36	47	58	61
			27	32	33.5	36.5	39.5	50.5	62	65
			/	22		31		35
Inlet and Outlet pipe			3/4” Iinternal Thread
Condensate pipe			3/4” External Thread
KM serious condensate pipe			/	25mm		32mm
KM serious panel size			/	650*650		950*950
Maximum Allowable Working pressure			1.2Mpa
Power			AC220V/50HZ
